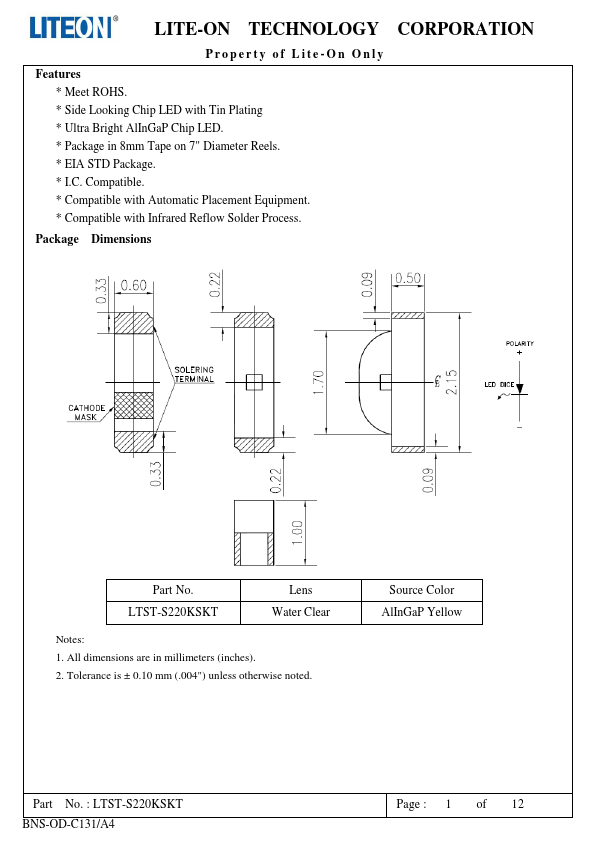

LTST-S220KSKT
Features
- Meet ROHS.
- Side Looking Chip LED with Tin Plating
- Ultra Bright Al In Ga P Chip LED.
- Package in 8mm Tape on 7" Diameter Reels.
- EIA STD Package.
- I.C. patible.
- patible with Automatic Placement Equipment.
- patible with Infrared Reflow Solder Process. Package Dimensions
Part No. LTST-S220KSKT
Lens Water Clear
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted.
Source Color Al In Ga P Yellow
Part No. : LTST-S220KSKT BNS-OD-C131/A4
Page : 1 of 12
LITE-ON TECHNOLOGY CORPORATION

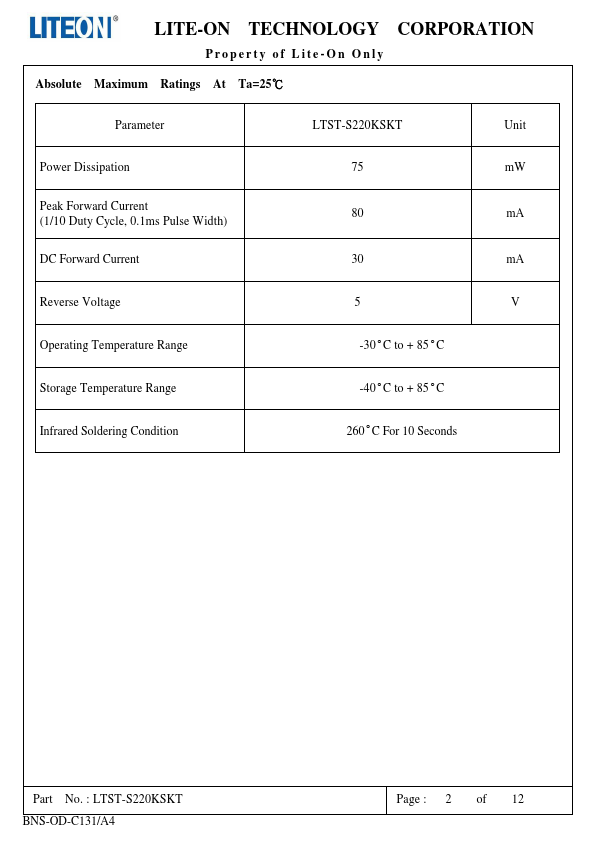

Property of Lite-On Only Absolute Maximum Ratings At Ta=25℃
Parameter
Unit
Power Dissipation
75 m W
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)
80 m A
DC Forward Current
30 m A
Reverse Voltage
Operating Temperature Range
-30°C to + 85°C
Storage Temperature Range
-40°C to + 85°C
Infrared Soldering Condition
260°C For 10 Seconds
Part No. : LTST-S220KSKT BNS-OD-C131/A4
Page : 2 of...
