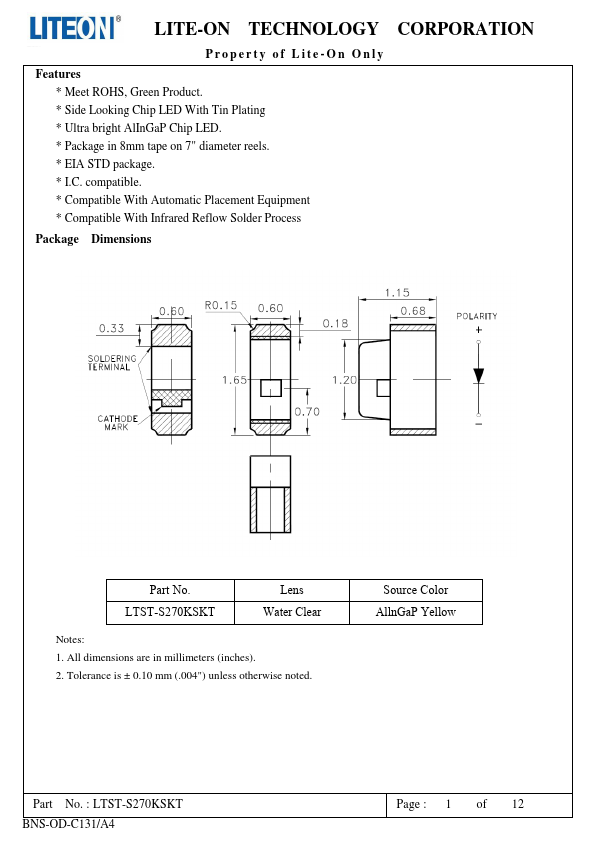

LTST-S270KSKT
Features
- Meet ROHS, Green Product.
- Side Looking Chip LED With Tin Plating
- Ultra bright Al In Ga P Chip LED.
- Package in 8mm tape on 7" diameter reels.
- EIA STD package.
- I.C. patible.
- patible With Automatic Placement Equipment
- patible With Infrared Reflow Solder Process
Package Dimensions
CORPORATION
Part No. LTST-S270KSKT
Lens Water Clear
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted.
Source Color Alln Ga P Yellow
Part No. : LTST-S270KSKT BNS-OD-C131/A4
Page : 1 of 12
LITE-ON TECHNOLOGY CORPORATION
Sam Li20120117
Property of Lite-On Only
Absolute Maximum Ratings At Ta=25℃
Parameter
Unit
Power Dissipation
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)
DC Forward Current
75 m W
80 m A
30 m A
Reverse Voltage
Operating Temperature Range
-30°C to + 85°C
Storage Temperature Range
-40°C to + 85°C
Infrared Soldering Condition
260°C For 10 Seconds
