LTST-S310EGBK-TF - SMD LED

Name: LTST-S310EGBK-TF
SKU: LTST-S310EGBK-TF-1592757

LITEON

The LTST-S310EGBK-TF by LITEON is a SMD LED. Below is the official datasheet preview.

📥 Download Datasheet

LTST-S310EGBK-TF SMD LED by LITEON - Datasheet Preview — Official preview page of the **LTST-S310EGBK-TF** SMD LED datasheet (LITEON).

Datasheet Details

Part number	LTST-S310EGBK-TF
Manufacturer	LITEON
File Size	479.31 KB
Description	SMD LED
Datasheet	LTST-S310EGBK-TF-LITEON.pdf

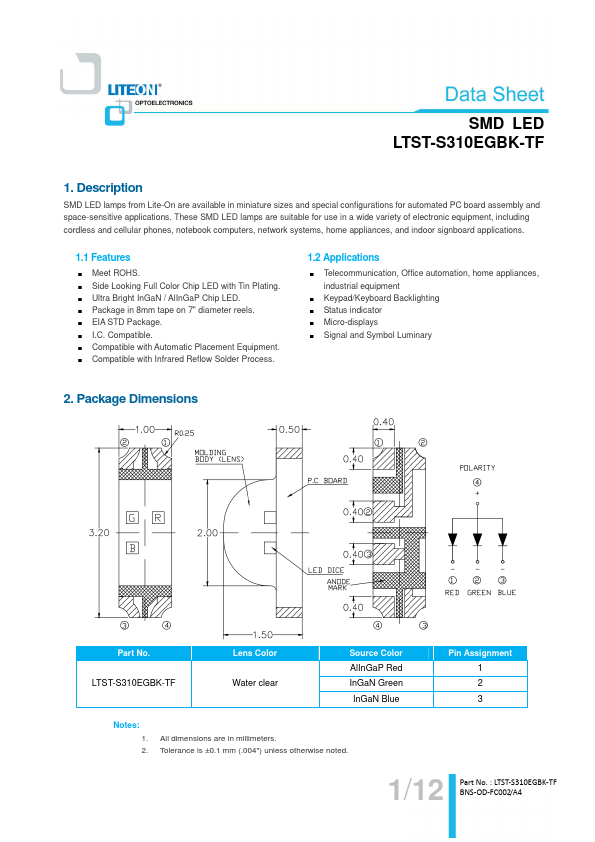

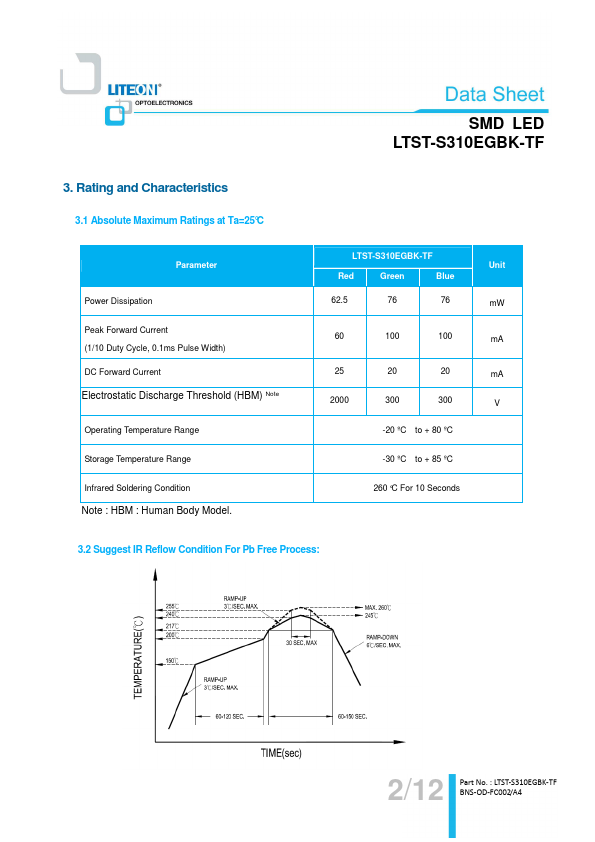

Additional preview pages of the LTST-S310EGBK-TF datasheet.

LTST-S310EGBK-TF Product details

Description

SMD LED lamps from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications.

Features

Meet ROHS.
Side Looking Full Color Chip LED with Tin Plating.
Ultra Bright InGaN / AlInGaP Chip LED.
Package in 8mm tape on 7" diameter reels.
EIA STD Package.
I. C. Compatible.
Compatible with Automatic Placement Equipment.
Compatible with Infrared Reflow Solder Process. 1.2.
