LTST-S310F2KT SMD LED

LITEON

Description

SMD LED Product Data Sheet LTST-S310F2KT Spec No.:DS22-2003-047 Effective Date: 05/11/2022 Revision: I LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Te.
SMD LED lamps from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive application.

📥 Download Datasheet

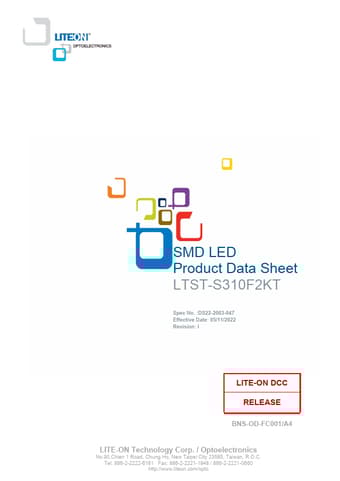

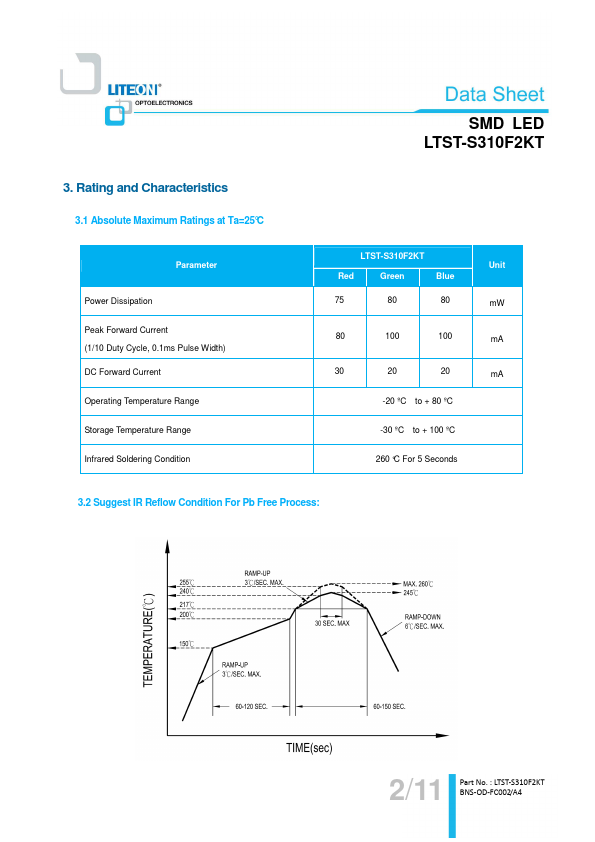

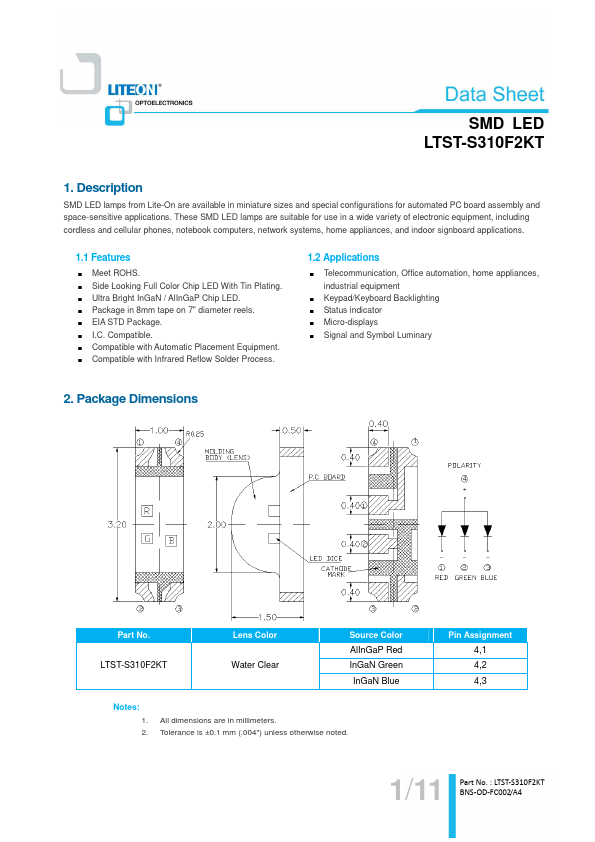

LTST-S310F2KT Datasheet Preview — Preview of LTST-S310F2KT PDF

Datasheet Specifications

Part number: LTST-S310F2KT
Manufacturer: LITEON
File Size: 623.43 KB
Datasheet: LTST-S310F2KT-LITEON.pdf
Description: SMD LED

Features

* Meet ROHS.
* Side Looking Full Color Chip LED With Tin Plating.
* Ultra Bright InGaN / AlInGaP Chip LED.
* Package in 8mm tape on 7" diameter reels.
* EIA STD Package.
* I. C. Compatible.
* Compatible with Automatic Placement Equipment.
* Compatible with Infrared Ref
