LTST-S326KGJRKT Datasheet | LITEON

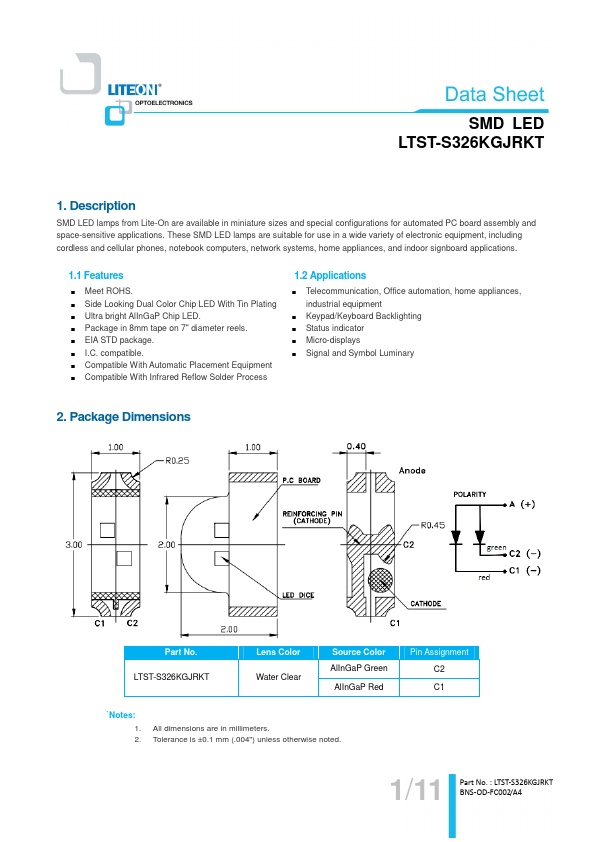

Description SMD LED lamps from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications. These SMD LED lamps are suitable for use in a wide variety of electronic equipment, including cordless and cellular phones, notebook puters, network systems, home appliances, and indoor signboard applications. 1.1 Features Meet ROHS. Side Looking Dual Color Chip LED With Tin Plating Ultra bright Al In Ga P Chip LED. Package in 8mm tape on 7" diameter reels. EIA STD package. I.C. patible. patible With Automatic Placement Equipment patible With Infrared Reflow Solder Process 1.2 Applications Telemunication, Office automation, home appliances, industrial equipment Keypad/Keyboard Backlighting Status indicator Micro-displays Signal and Symbol Luminary 2. Package Dimensions Part No. LTST-S326KGJRKT Lens Color Water Clear Source Color Al In Ga P Green Al In Ga P Red Pin Assignment C2 C1 `Notes: 1. 2. All dimensions are in...
