LTST-S32F1KT-5A - SMD LED

Name: LTST-S32F1KT-5A
SKU: LTST-S32F1KT-5A-1586491

LITEON

📥 Download Datasheet

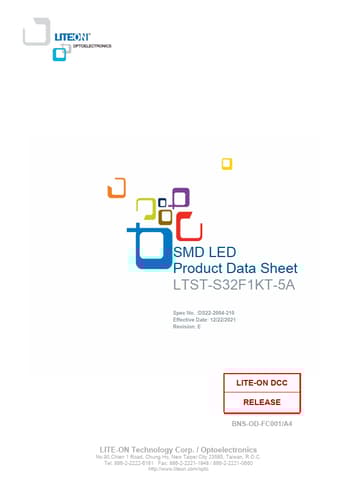

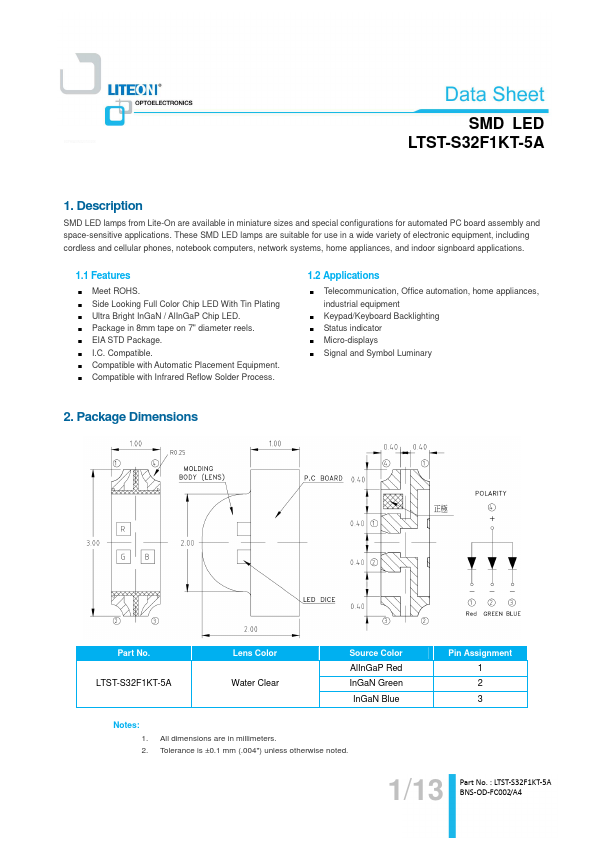

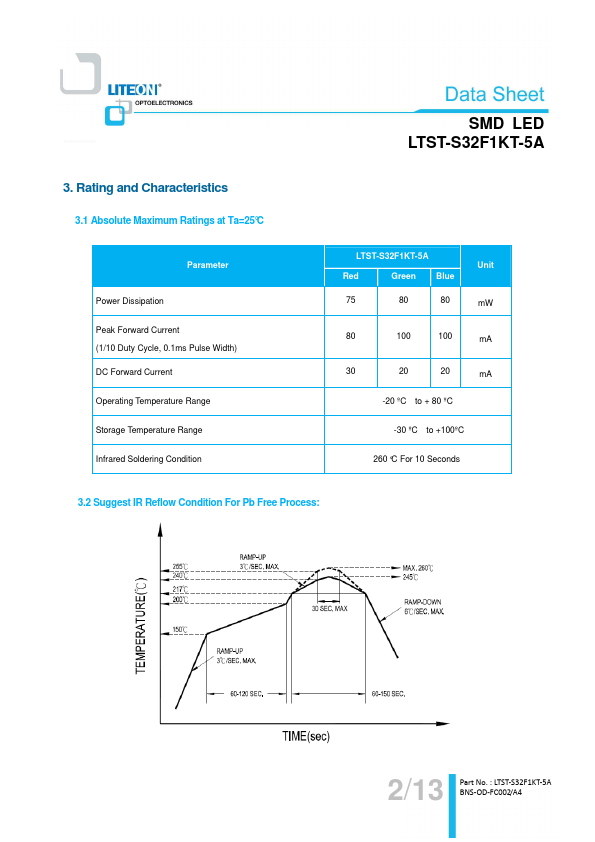

LTST-S32F1KT-5A Datasheet Preview — Preview of LTST-S32F1KT-5A PDF

Datasheet Details

Part number	LTST-S32F1KT-5A
Manufacturer	LITEON
File Size	663.75 KB
Description	SMD LED
Datasheet	LTST-S32F1KT-5A-LITEON.pdf

LTST-S32F1KT-5A Product details

Description

SMD LED lamps from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications.

Features

Meet ROHS.
Side Looking Full Color Chip LED With Tin Plating.
Ultra Bright InGaN / AlInGaP Chip LED.
Package in 8mm tape on 7" diameter reels.
EIA STD Package.
I. C. Compatible.
Compatible with Automatic Placement Equipment.
Compatible with Infrared Reflow Solder Process. 1.2.
