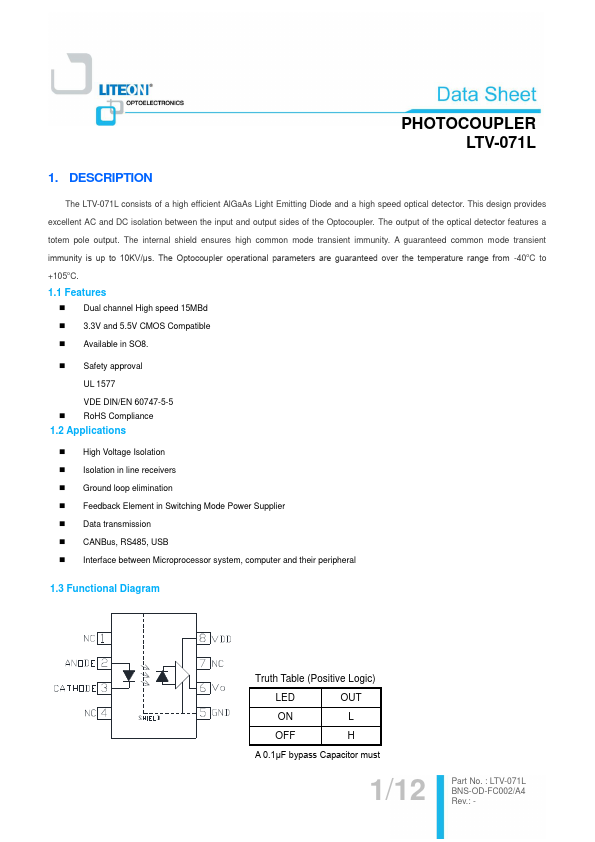

LTV-071L
DESCRIPTION
The LTV-071L consists of a high efficient Al Ga As Light Emitting Diode and a high speed optical detector. This design provides excellent AC and DC isolation between the input and output sides of the Optocoupler. The output of the optical detector features a totem pole output. The internal shield ensures high mon mode transient immunity. A guaranteed mon mode transient immunity is up to 10KV/μs. The Optocoupler operational parameters are guaranteed over the temperature range from -40o C to +105o C.
1.1 Features
- Dual channel High speed 15MBd
- 3.3V and 5.5V CMOS patible
- Available in SO8.
- Safety approval UL 1577 VDE DIN/EN 60747-5-5
- Ro HS pliance
1.2 Applications
- High Voltage Isolation
- Isolation in line receivers
- Ground loop elimination
- Feedback Element in Switching Mode Power Supplier
- Data transmission
- CANBus, RS485, USB
- Interface between Microprocessor system, puter and their peripheral
1.3 Functional Diagram
Truth Table (Positive...
