LTV-176G Photocoupler

📥 Download Datasheet  Datasheet Preview Page 1

Description

Photocoupler Product Data Sheet LTV-176G Spec No.:DS70-2018-0128 Effective Date: 09/26/2018 Revision: - LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON T.
The LITEON LTV-176G consists of an aluminum gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET in a SOP4 package, which is s.

📥 Download Datasheet

Preview of LTV-176G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LTV-176G
Manufacturer
LITEON
File Size
409.61 KB
Datasheet
LTV-176G-LITEON.pdf
Description
Photocoupler

Features

* Normally open (1-form-A) Operating temperature range: 110oC(max) Trigger LED current: 3 mA (max) Isolation voltage: 3750 Vrms (min) OFF-state output terminal voltage : 400V (min) ON-state current : 120mA (max) ON-state resistance : 35Ω (max) Safety standards UL1577 VDE DIN EN60747-5-5 (VDE 0884-5) 1

Applications

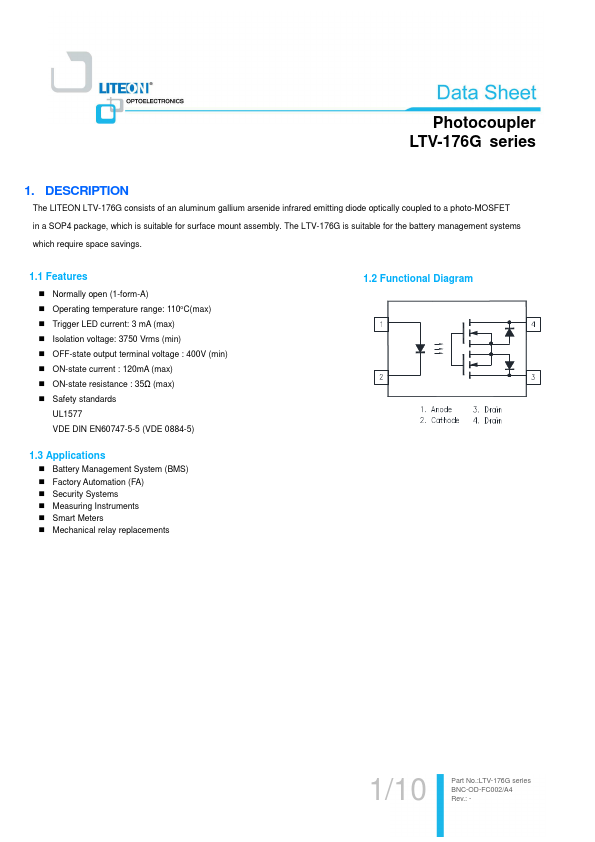

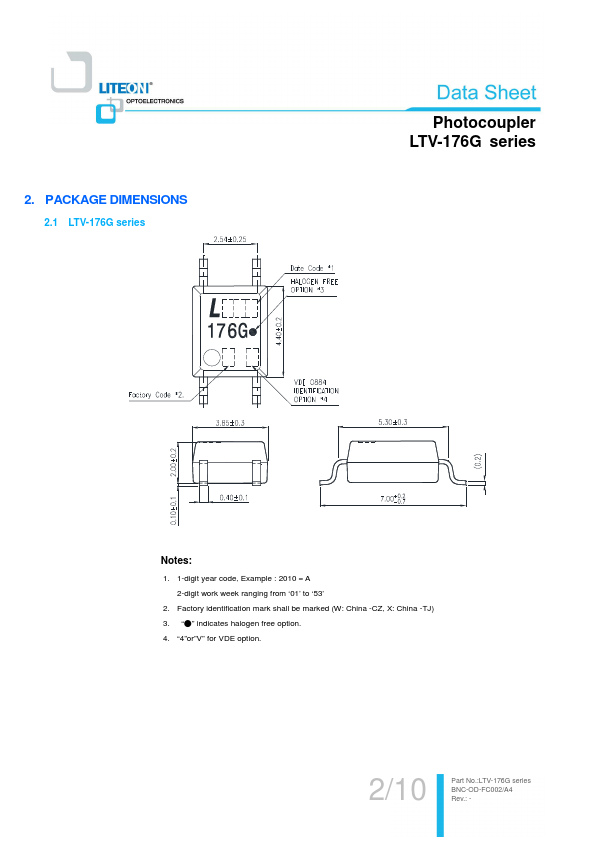

* Battery Management System (BMS) Factory Automation (FA) Security Systems Measuring Instruments Smart Meters Mechanical relay replacements 1.2 Functional Diagram 1/10 Part No. :LTV-176G series BNC-OD-FC002/A4 Rev. : - 2. PACKAGE DIMENSIONS 2.1 LTV-176G series Photocoupler LTV-176G series Notes: 1
