LTV-305X - Photocoupler

Datasheet Summary

Description

1.1

Features

Isolation voltage between input and output Viso : 3,750Vrms.
4pin MFP non zero-cross optoisolators triac driver output.
High repetitive peak off-state voltage VDRM : Min. 600V.
High critical rate of rise of off-state voltage ( dV/dt : MIN. 1000V / s ).
Mini-flat package : 2.0mm profile : LTV-3050, LTV-3051, LTV-3052, LTV-3053.
Safety approval UL 1577 cUL CA5A VDE DIN EN60747-5-5 (VDE 0884-5).
RoHS Compliance All materials be used in device are followed EU RoH.

LITEON

📥 Download Datasheet

Datasheet Details

Part number	LTV-305X
Manufacturer	LITEON
File Size	434.00 KB
Description	Photocoupler
Datasheet	LTV-305X Datasheet

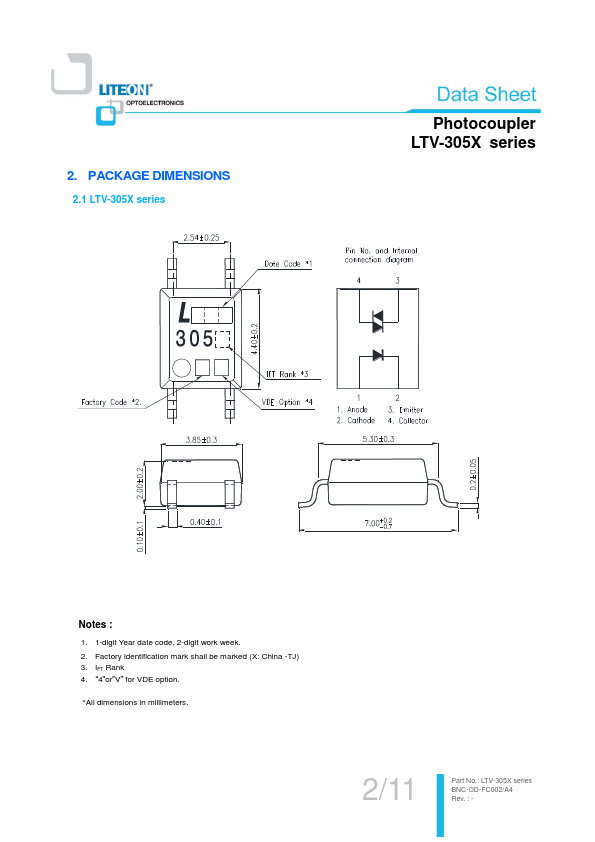

Additional preview pages of the LTV-305X datasheet.

📁 Similar Datasheet

LTV-3120 - Photocoupler (LITE-ON)
LTV-3120M - Photocoupler (LITE-ON)
LTV-3120S - Photocoupler (LITE-ON)
LTV-314 - Photocoupler (LITE-ON)
LTV-314P - Photocoupler (LITE-ON)
LTV-314W - Photocoupler (LITE-ON)
LTV-3150 - Photocoupler (LITE-ON)
LTV-3150M - Photocoupler (LITE-ON)
LTV-3150S - Photocoupler (LITE-ON)
LTV-3213 - Photocoupler (LITE-ON)

Other Datasheets by LITEON

LTV-302X - Photocoupler
LTV-3063 - Photocoupler
LTV-3083 - Photocoupler
LTV-3150-L - Photocouplers
LTV-3150M-L - Photocouplers
LTV-3150S-L - Photocouplers
LTV-332J-TP1 - Photocoupler
LTV-355T - Photocoupler

Full PDF Text Transcription

Click to expand full text

Photocoupler Product Data Sheet LTV-305X Spec No.: DS70-2014-0079 Effective Date: 07/15/2016 Revision: B LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto Photocoupler LTV-305X series 1. DESCRIPTION 1.1 Features  Isolation voltage between input and output Viso : 3,750Vrms  4pin MFP non zero-cross optoisolators triac driver output  High repetitive peak off-state voltage VDRM : Min. 600V  High critical rate of rise of off-state voltage ( dV/dt : MIN. 1000V / s )  Mini-flat package : 2.
