LTV-3083 - Photocoupler

LITEON

📥 Download Datasheet

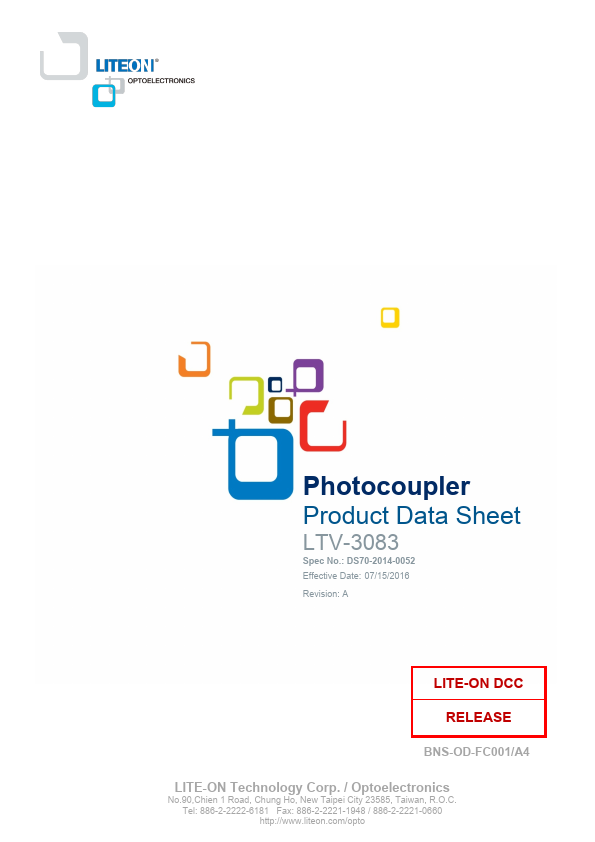

LTV-3083 Datasheet Preview — Preview of LTV-3083 PDF

datasheet Preview Page 2

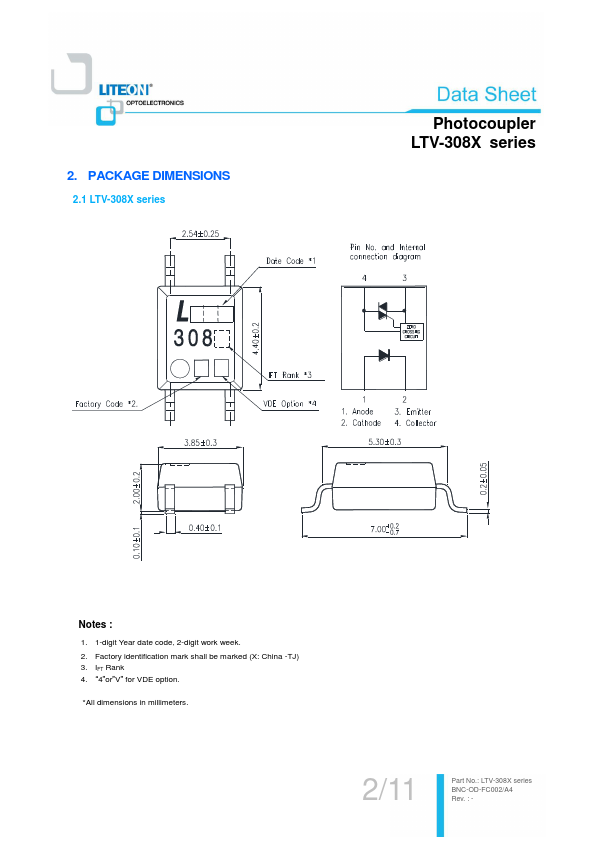

datasheet Preview Page 3

Datasheet Details

Part number	LTV-3083
Manufacturer	LITEON ↗
File Size	436.07 KB
Description	Photocoupler
Datasheet	LTV-3083-LITEON.pdf

LTV-3083 Product details

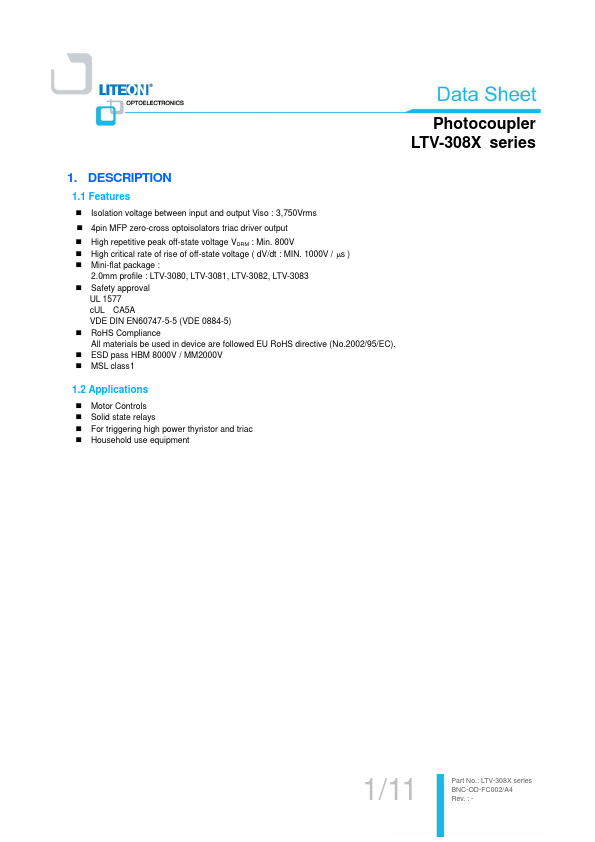

Description

1.1

Features

Isolation voltage between input and output Viso : 3,750Vrms.
4pin MFP zero-cross optoisolators triac driver output.
High repetitive peak off-state voltage VDRM : Min. 800V.
High critical rate of rise of off-state voltage ( dV/dt : MIN. 1000V / s ).
Mini-flat package : 2.0mm profile : LTV-3080, LTV-3081, LTV-3082, LTV-3083.
Safety approval UL 1577 cUL CA5A VDE DIN EN60747-5-5 (VDE 0884-5).
RoHS Compliance All materials be used in device are followed EU RoHS di.
