LTV-60LP, LTV-60LW Photocoupler

LITEON

Description

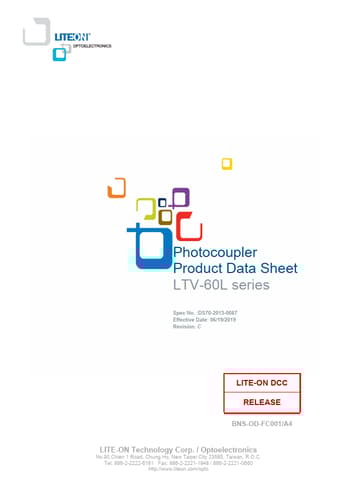

Photocoupler Product Data Sheet LTV-60L series Spec No.:DS70-2015-0087 Effective Date: 06/19/2019 Revision: C LITE-ON DCC RELEASE BNS-OD-FC001/A4 LIT.

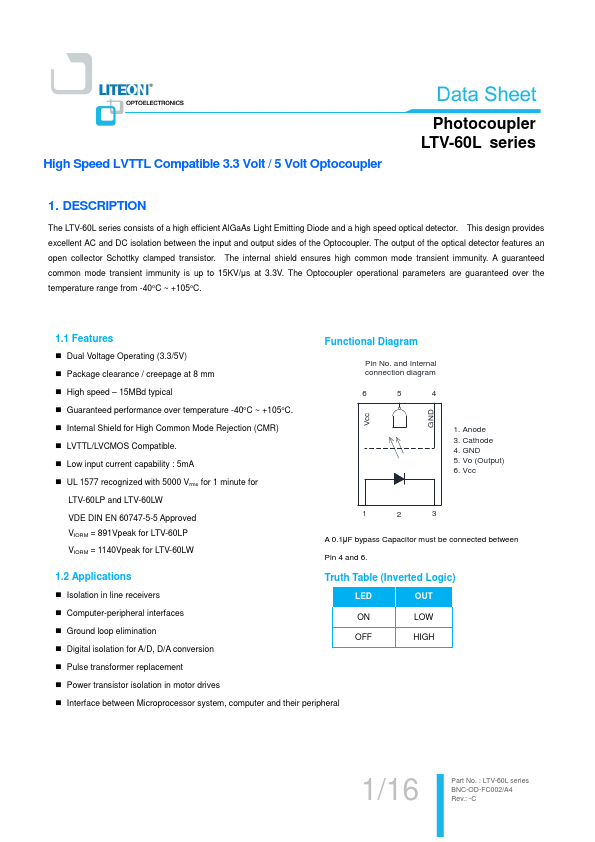

The LTV-60L series consists of a high efficient AlGaAs Light Emitting Diode and a high speed optical detector.

📥 Download Datasheet

LTV-60LP Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-60LP, LTV-60LW. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LTV-60LP, LTV-60LW
Manufacturer: LITEON
File Size: 402.13 KB
Datasheet: LTV-60LW-LITEON.pdf
Description: Photocoupler
Note: This datasheet PDF includes multiple part numbers: LTV-60LP, LTV-60LW.
Please refer to the document for exact specifications by model.

Features

* an open collector Schottky clamped transistor. The internal shield ensures high common mode transient immunity. A guaranteed common mode transient immunity is up to 15KV/μs at 3.3V. The Optocoupler operational parameters are guaranteed over the temperature range from -40oC ~ +105oC. 1.1 Features

Applications

* Isolation in line receivers
* Computer-peripheral interfaces
* Ground loop elimination
* Digital isolation for A/D, D/A conversion Truth Table (Inverted Logic) LED OUT ON LOW OFF HIGH
* Pulse transformer replacement
* Power transistor isolation in motor drives
