LTV-60LW
DESCRIPTION
The LTV-60L series consists of a high efficient Al Ga As Light Emitting Diode and a high speed optical detector. This design provides excellent AC and DC isolation between the input and output sides of the Optocoupler. The output of the optical detector features an open collector Schottky clamped transistor. The internal shield ensures high mon mode transient immunity. A guaranteed mon mode transient immunity is up to 15KV/μs at 3.3V. The Optocoupler operational parameters are guaranteed over the temperature range from -40o C ~ +105o C.
1.1 Features
- Dual Voltage Operating (3.3/5V)
- Package clearance / creepage at 8 mm
- High speed
- 15MBd typical
- Guaranteed performance over temperature -40o C ~ +105o C.

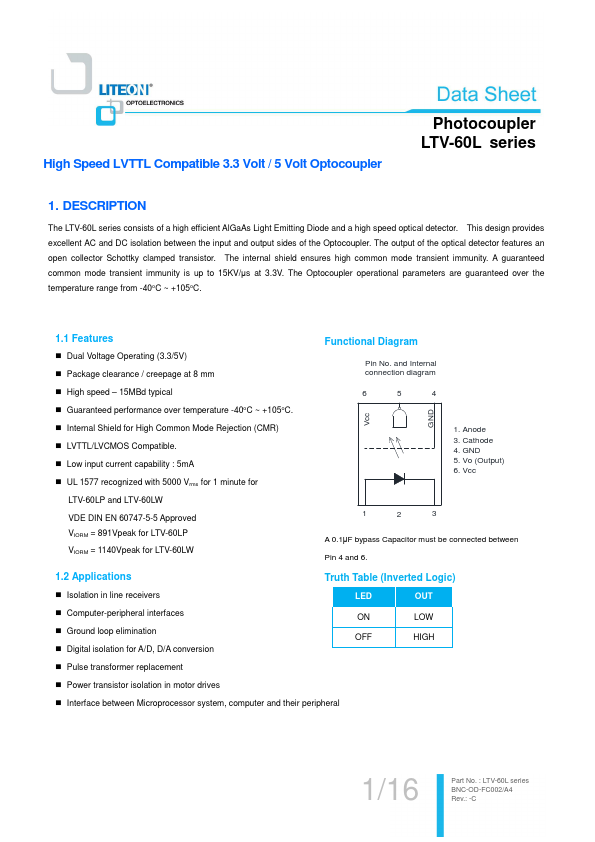

Functional Diagram
Pin No. and Internal connection diagram
Vcc GND
- Internal Shield for High mon Mode Rejection (CMR)
- LVTTL/LVCMOS patible.
- Low input current capability : 5m A
- UL 1577 recognized with 5000 Vrms for 1 minute for
LTV-60LP and LTV-60LW VDE...
