LTV-715F - Photocoupler

LITEON

📥 Download Datasheet

LTV-715F Datasheet Preview — Preview of LTV-715F PDF

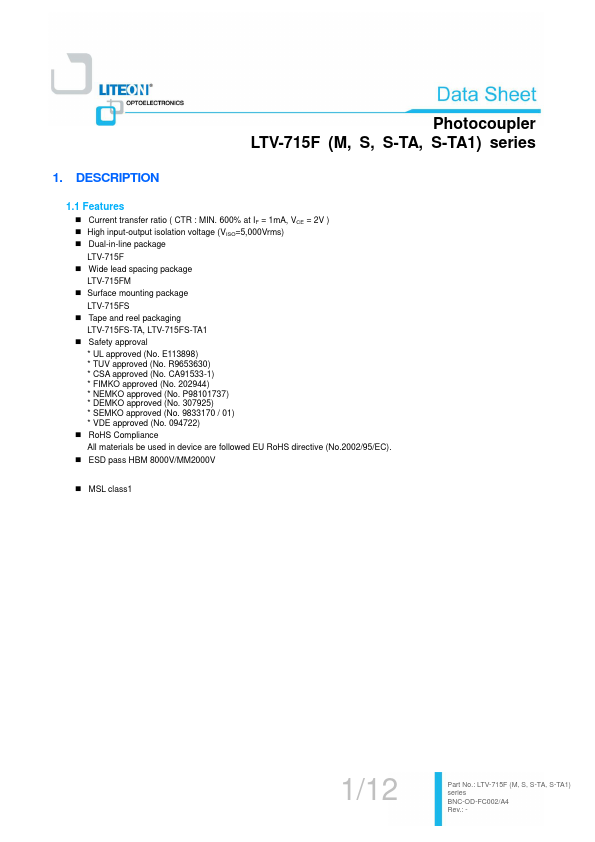

datasheet Preview Page 2

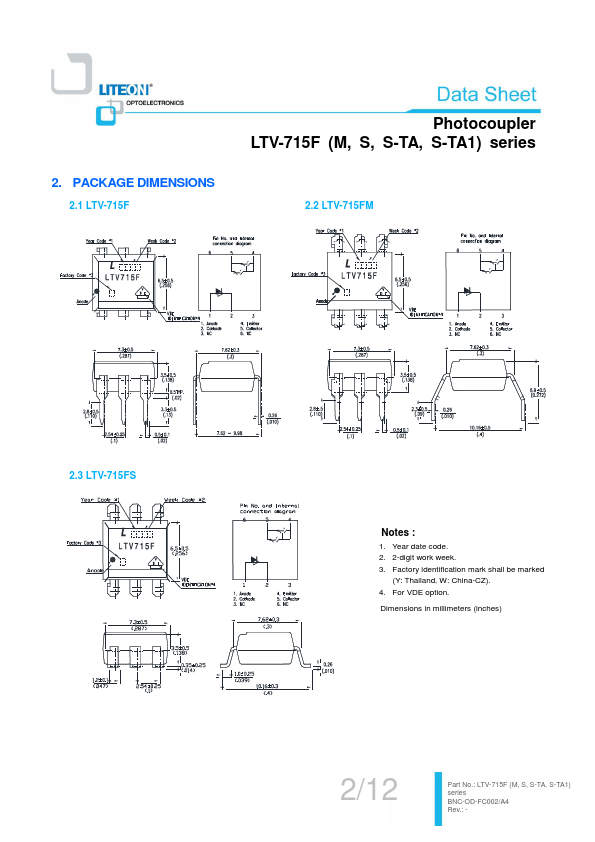

datasheet Preview Page 3

Datasheet Details

Part number	LTV-715F
Manufacturer	LITEON ↗
File Size	563.50 KB
Description	Photocoupler
Datasheet	LTV-715F-LITEON.pdf

LTV-715F Product details

Description

1.1

Features

Current transfer ratio ( CTR : MIN. 600% at IF = 1mA, VCE = 2V ).
High input-output isolation voltage (VISO=5,000Vrms).
Dual-in-line package LTV-715F.
Wide lead spacing package LTV-715FM.
Surface mounting package LTV-715FS.
Tape and reel packaging LTV-715FS-TA, LTV-715FS-TA1.
Safety approval.
UL approved (No. E113898).
TUV approved (No. R9653630).
CSA approved (No. CA91533-1).
FIMKO approved (No. 202944).
NEMKO approved (No. P98101737).
