Photocoupler Product Data Sheet LTV-715F (M, S, S-TA, S-TA1) series Spec No.: DS-70-99-0006 Effective Date: 07/28/2016 Revision: C LITE-ON DCC RELEASE.
1.
Current transfer ratio ( CTR : MIN.
High input-output isolation voltage (VISO=5,000Vrms).
D.

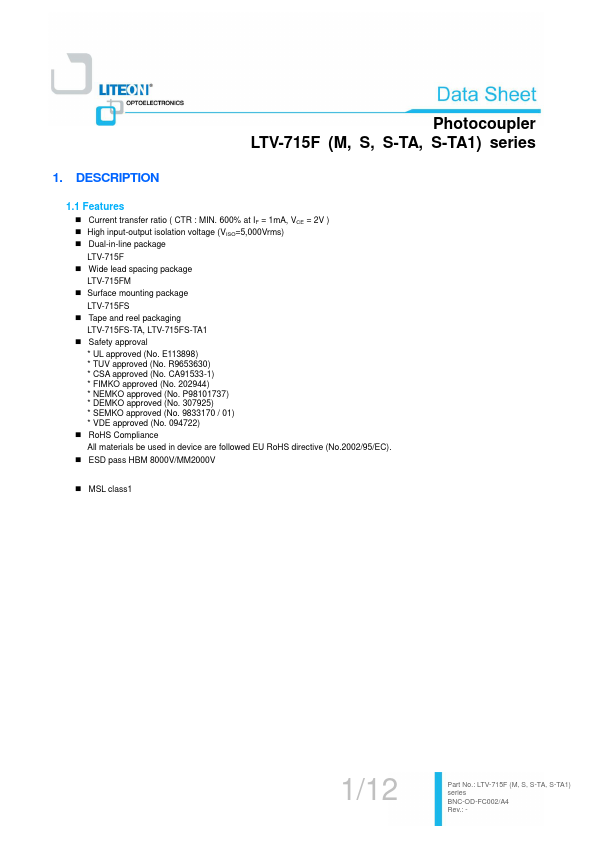

Features
* Current transfer ratio ( CTR : MIN. 600% at IF = 1mA, VCE = 2V )
* High input-output isolation voltage (VISO=5,000Vrms)
* Dual-in-line package
LTV-715F
* Wide lead spacing package
LTV-715FM
* Surface mounting package
LTV-715FS
* Tape and reel packaging
LTV-715FS-TA, LTV-715
