LTV-8051S, LTV-805X Photocoupler

📥 Download Datasheet  Datasheet Preview Page 1

Description

Photocoupler Product Data Sheet LTV-805XM Series Spec No.:DS70-2017-0036 Effective Date: 05/13/2023 Revision: B LITE-ON DCC RELEASE BNS-OD-FC001/A4 L.
1. Isolation voltage between input and output Viso : 5,000 Vrms. High repetitive peak off-state voltage VDRM : Min. Hi.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LTV-8051S, LTV-805X. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LTV-8051S, LTV-805X
Manufacturer
LITEON
File Size
466.87 KB
Datasheet
LTV-805X-LITEON.pdf
Description
Photocoupler
Note
This datasheet PDF includes multiple part numbers: LTV-8051S, LTV-805X.
Please refer to the document for exact specifications by model.

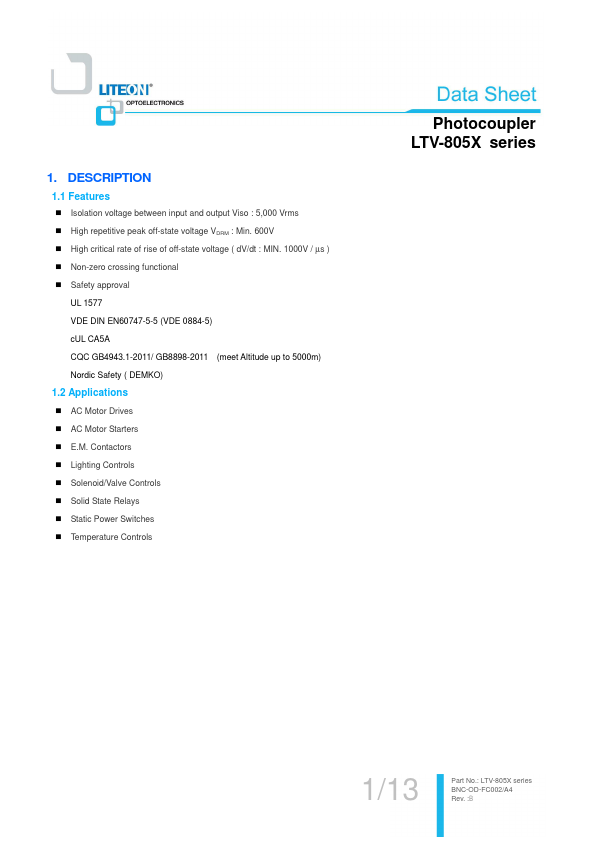

Features

* Isolation voltage between input and output Viso : 5,000 Vrms
* High repetitive peak off-state voltage VDRM : Min. 600V
* High critical rate of rise of off-state voltage ( dV/dt : MIN. 1000V / µs )
* Non-zero crossing functional
* Safety approval UL 1577 VDE DIN EN60747-5-5 (VDE

Applications

* AC Motor Drives
* AC Motor Starters
* E. M. Contactors
* Lighting Controls
* Solenoid/Valve Controls
* Solid State Relays
* Static Power Switches

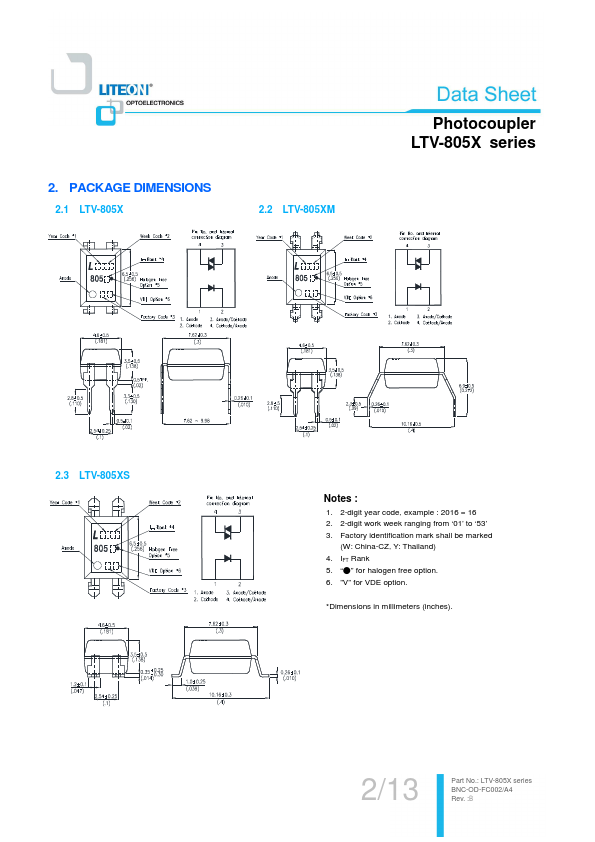

* Temperature Controls Photocoupler LTV-805X series 1/13 Part No. : LTV-805X series BNC-OD-FC002/A4 Rev. :B 2. PACKAGE
