LTV-8212 - Photocouplers

Datasheet Summary

Description

PhotoMOS Relay are integration of an AlGaAs Light Emitting Diode, a Photo Voltage Generator and two MOSFET.

These devices are ideally suited for controlling low-level signals and various types of loads, for example relays, motors, lamps and solenoids.

Features

  • n Controls low-level analog signals n Controls various types of loads such as relays, motors, lamps and solenoids n Stable on-resistance n Low-level off state leakage current of max 1uA n Isolation voltage between input and output Viso : 5,000 Vrms n Package : DIP4-pin n Safety approval Pending 1.3 Functional Diagram 1.2.

📥 Download Datasheet

Datasheet preview – LTV-8212

Datasheet Details

Part number LTV-8212
Manufacturer LITEON
File Size 735.86 KB
Description Photocouplers
Datasheet download datasheet LTV-8212 Datasheet
Additional preview pages of the LTV-8212 datasheet.

📁 Similar Datasheet

Other Datasheets by LITEON

Full PDF Text Transcription

Click to expand full text

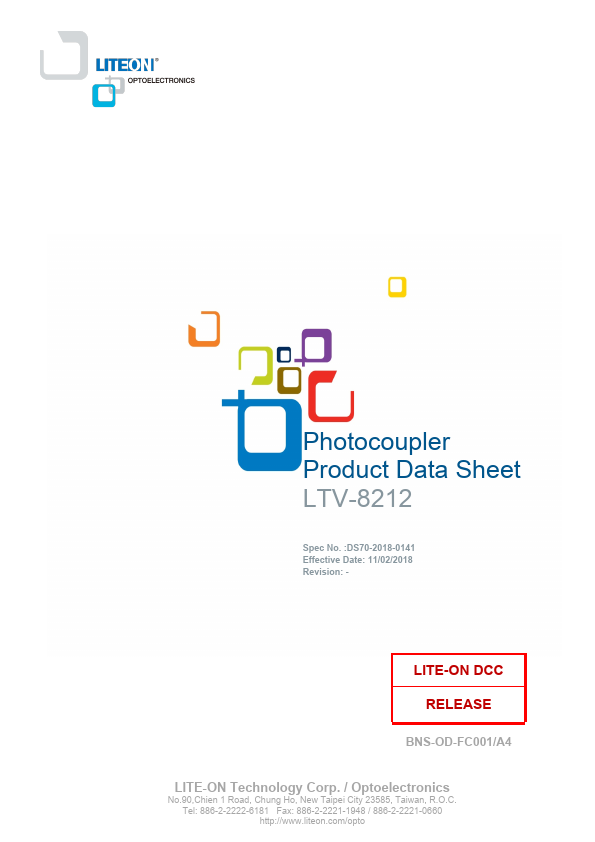

Photocoupler Product Data Sheet LTV-8212 Spec No. :DS70-2018-0141 Effective Date: 11/02/2018 Revision: - LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto Photocoupler LTV-821X series 1. DESCRIPTION PhotoMOS Relay are integration of an AlGaAs Light Emitting Diode, a Photo Voltage Generator and two MOSFET. These devices are ideally suited for controlling low-level signals and various types of loads, for example relays, motors, lamps and solenoids. PhotoMOS Relay provide 5,000V isolation (Viso(rms)) between input to output. 1.
