LTW-006DCG-E2 - Specific Lighting

Datasheet Summary

Description

The LTW (LiteOn White PLCC LED) is a revolutionary, energy efficient and ultra compact new light source, combining the lifetime and reliability advantages of Light Emitting Diodes with the brightness of conventional lighting.

Features

  • Package in 12mm tape on 7" diameter reels. Compatible with automatic placement equipment. Compatible with infrared and vapor phase reflow solder process. EIA STD package. I. C. compatible. Meet green product and Pb-free(According to RoHS) 1.2.

📥 Download Datasheet

Datasheet preview – LTW-006DCG-E2

Datasheet Details

Part number LTW-006DCG-E2
Manufacturer LITEON
File Size 477.47 KB
Description Specific Lighting
Datasheet download datasheet LTW-006DCG-E2 Datasheet
Additional preview pages of the LTW-006DCG-E2 datasheet.

📁 Similar Datasheet

Other Datasheets by LITEON

Full PDF Text Transcription

Click to expand full text

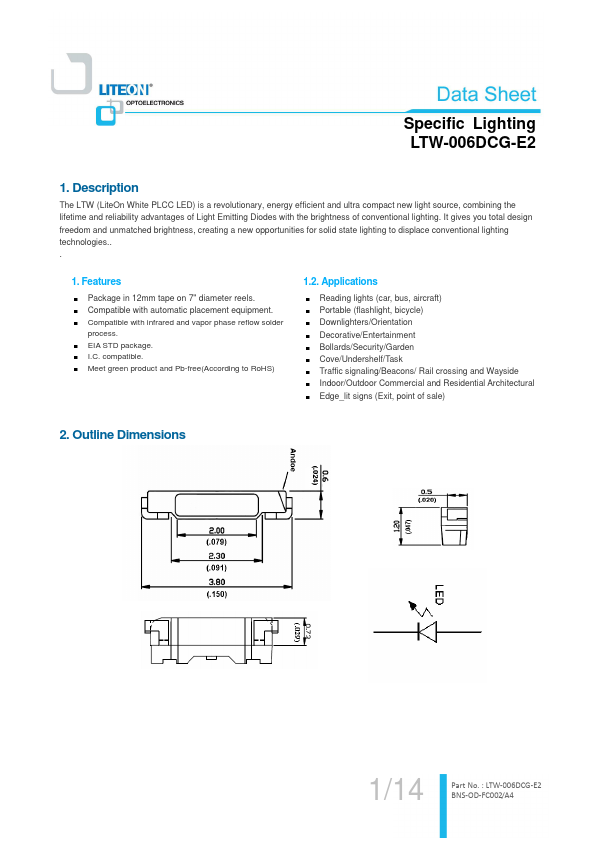

Specific Lighting Product Data Sheet LTW-006DCG-E2 Spec No. :DS22-2009-0147 Effective Date: 11/11/2017 Revision: G LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto Specific Lighting LTW-006DCG-E2 1. Description The LTW (LiteOn White PLCC LED) is a revolutionary, energy efficient and ultra compact new light source, combining the lifetime and reliability advantages of Light Emitting Diodes with the brightness of conventional lighting. It gives you total design freedom and unmatched brightness, creating a new opportunities for solid state lighting to displace conventional lighting technologies.. . 1.
