LTW-020ZDCG - Display & Mobile

Datasheet Summary

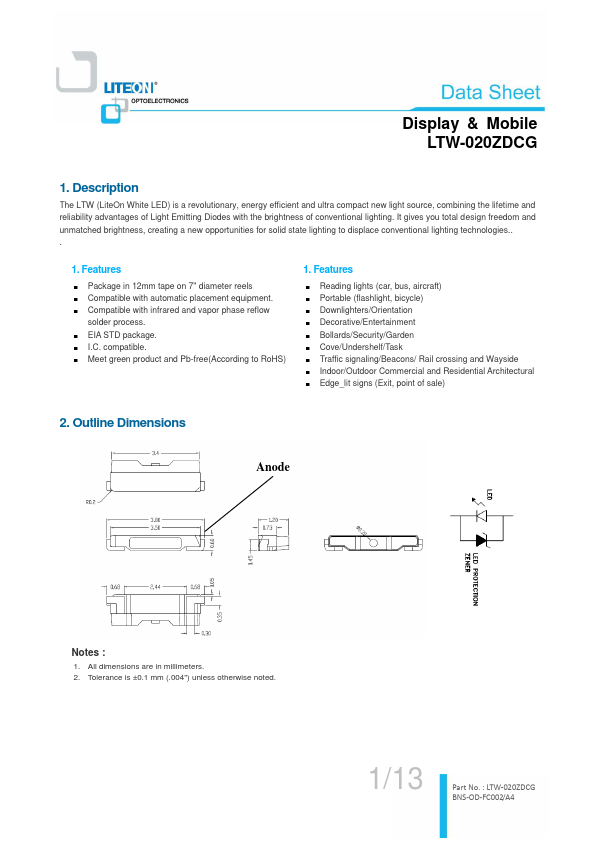

Description

The LTW (LiteOn White LED) is a revolutionary, energy efficient and ultra compact new light source, combining the lifetime and reliability advantages of Light Emitting Diodes with the brightness of conventional lighting.

Features

Package in 12mm tape on 7" diameter reels.
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase reflow solder process.
EIA STD package.
I. C. compatible.
Meet green product and Pb-free(According to RoHS) 1. Features.
Reading lights (car, bus, aircraft).
Portable (flashlight, bicycle).
Downlighters/Orientation.
Decorative/Entertainment.
Bollards/Security/Garden.
Cove/Undershelf/Task.
Traffic s.

Datasheet Details

Part number	LTW-020ZDCG
Manufacturer	LITEON
File Size	600.31 KB
Description	Display & Mobile
Datasheet	LTW-020ZDCG Datasheet
Additional preview pages of the LTW-020ZDCG datasheet.

📁 Similar Datasheet

LTW-008RGB2-PH1 - Specific Lighting (LITE-ON)

LTW-2R3D7 - Through Hole Lamp (Lite-On)

LTW-2S3D7 - LED (Lite-On Technology)

LTW-5630AZL57-EUH - Specific Lighting (LITE-ON)

LTW-5630SD530 - Specific Lighting (LITE-ON)

LTW-670DS - LED (Lite-On Technology)

LTW-C191TS5 - SMD LED (LITE-ON)

LTW-C193DM5 - LED Display (LITE-ON)

LTW-M140ZVS - SMD LED (LITE-ON)

LTW-M670GS - Yellow LED (Lite-On)

Full PDF Text Transcription

Click to expand full text

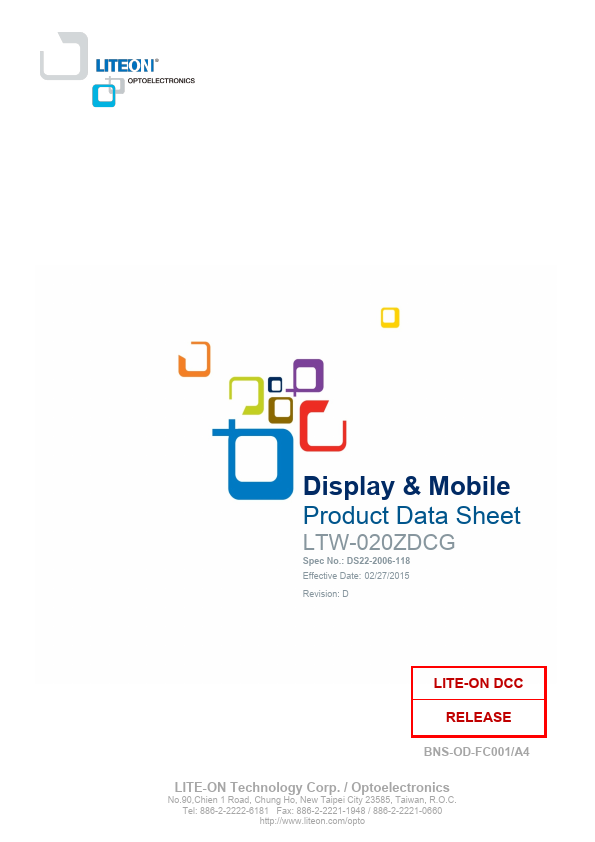

Display & Mobile Product Data Sheet LTW-020ZDCG Spec No.: DS22-2006-118 Effective Date: 02/27/2015 Revision: D LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto Display & Mobile LTW-020ZDCG 1. Description The LTW (LiteOn White LED) is a revolutionary, energy efficient and ultra compact new light source, combining the lifetime and reliability advantages of Light Emitting Diodes with the brightness of conventional lighting. It gives you total design freedom and unmatched brightness, creating a new opportunities for solid state lighting to displace conventional lighting technologies.. . 1.
