LTW-170TK Datasheet PDF - LITEON SMD LED Specs

LTW-170TK - SMD LED

Datasheet Summary

Features

Meet RoHS, Green Product.
Ultra bright InGaN White Chip LED.
Package in 8mm tape on 7" diameter reels.
Compatible with automatic placement equipment.
Compatible with infrared reflow solder process.
EIA STD package.

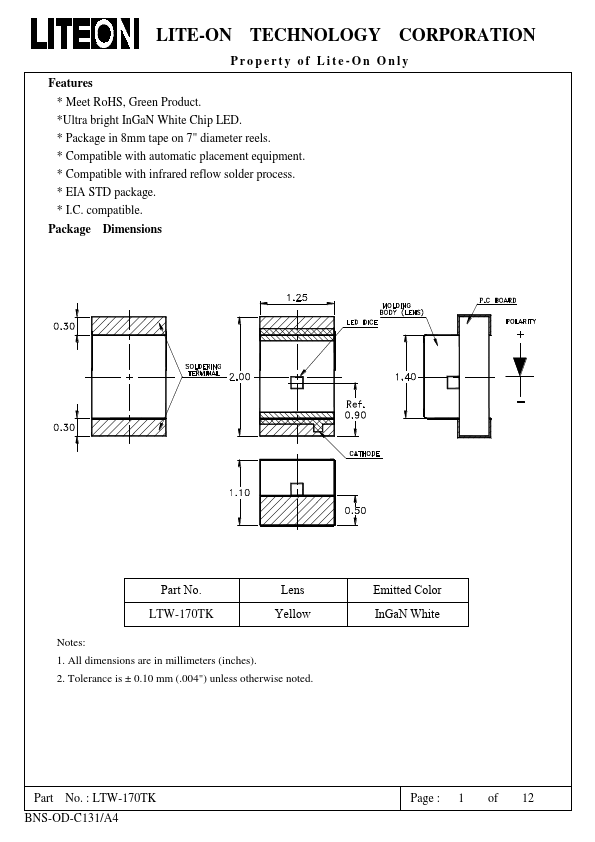

I. C. compatible. Package Dimensions Part No. LTW-170TK Lens Yellow Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted. Emitted Color InGaN White Part No. : LTW-170TK BNS-OD-C131/A.

Datasheet Details

Part number	LTW-170TK
Manufacturer	LITEON
File Size	1.00 MB
Description	SMD LED
Datasheet	LTW-170TK Datasheet

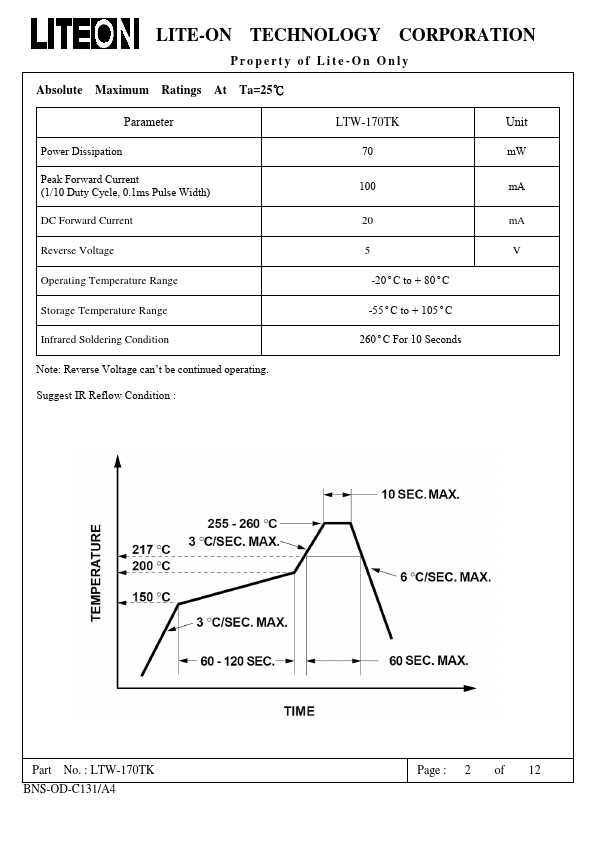

Additional preview pages of the LTW-170TK datasheet.

📁 Similar Datasheet

LTW-008RGB2-PH1 - Specific Lighting (LITE-ON)

LTW-2R3D7 - Through Hole Lamp (Lite-On)

LTW-2S3D7 - LED (Lite-On Technology)

LTW-5630AZL57-EUH - Specific Lighting (LITE-ON)

LTW-5630SD530 - Specific Lighting (LITE-ON)

LTW-670DS - LED (Lite-On Technology)

LTW-C191TS5 - SMD LED (LITE-ON)

LTW-C193DM5 - LED Display (LITE-ON)

LTW-M140ZVS - SMD LED (LITE-ON)

LTW-M670GS - Yellow LED (Lite-On)

Full PDF Text Transcription

Click to expand full text

SMD LED Product Data Sheet LTW-170TK Spec No.: DS22-2004-078 Effective Date: 06/01/2010 Revision: C LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto LITE-ON TECHNOLOGY CORPORATION Property of Lite-On Only Features * Meet RoHS, Green Product. *Ultra bright InGaN White Chip LED. * Package in 8mm tape on 7" diameter reels. * Compatible with automatic placement equipment. * Compatible with infrared reflow solder process. * EIA STD package. * I.C. compatible. Package Dimensions Part No. LTW-170TK Lens Yellow Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.
