LTW-42NC5
Features
- Low power consumption.
- High efficiency.
- Versatile mounting on p.c. board or panel.
- I.C. patible/low current requirement.
- Popular T-1 diameter.

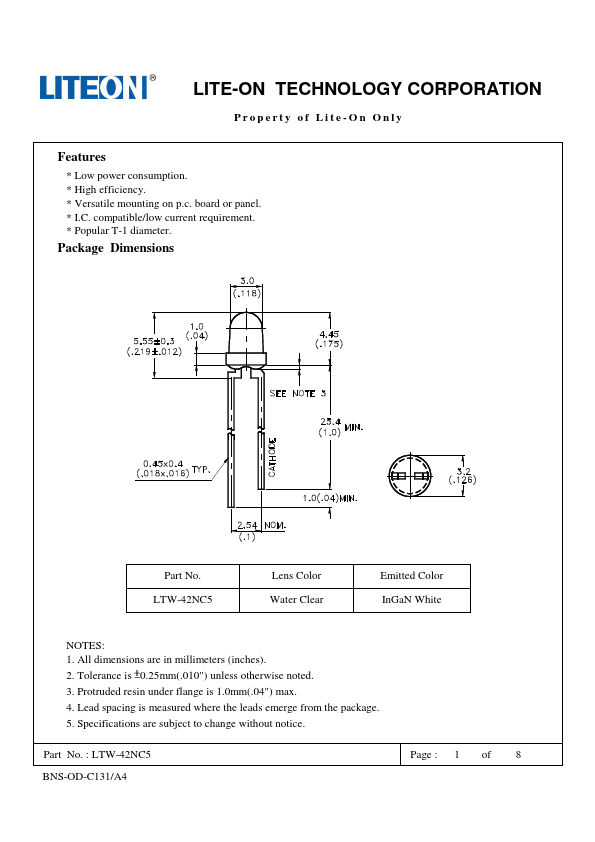

Package Dimensions
Part No. LTW-42NC5
Lens Color Water Clear
Emitted Color In Ga N White
NOTES: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measured where the leads emerge from the package. 5. Specifications are subject to change without notice.
Part No. : LTW-42NC5
BNS-OD-C131/A4
Page : 1 of 8
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only

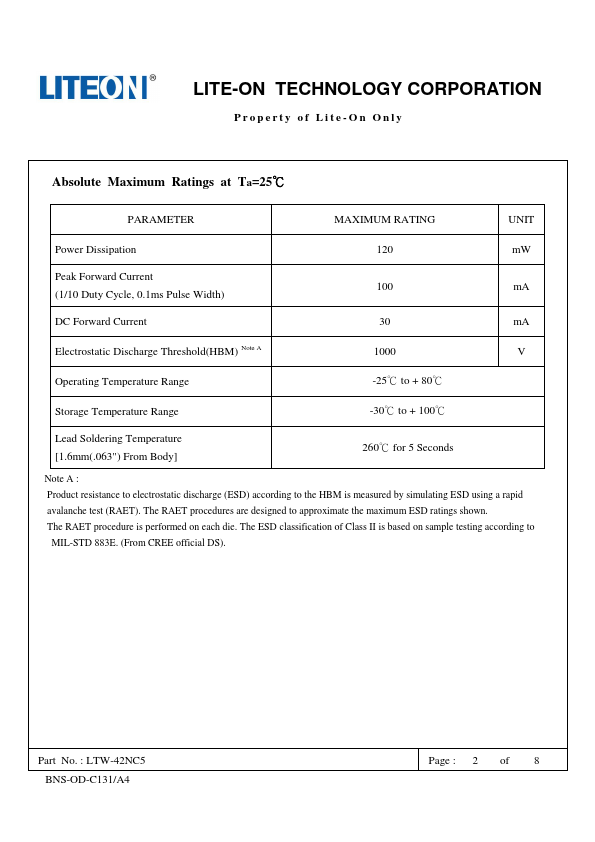

Absolute Maximum Ratings at Ta=25℃
PARAMETER
MAXIMUM RATING
UNIT
Power Dissipation Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) DC Forward Current
120 m W
100 m A
30 m A
Electrostatic Discharge Threshold(HBM) Note A Operating Temperature Range
-25℃ to + 80℃
Storage Temperature Range
-30℃ to + 100℃
Lead Soldering...
