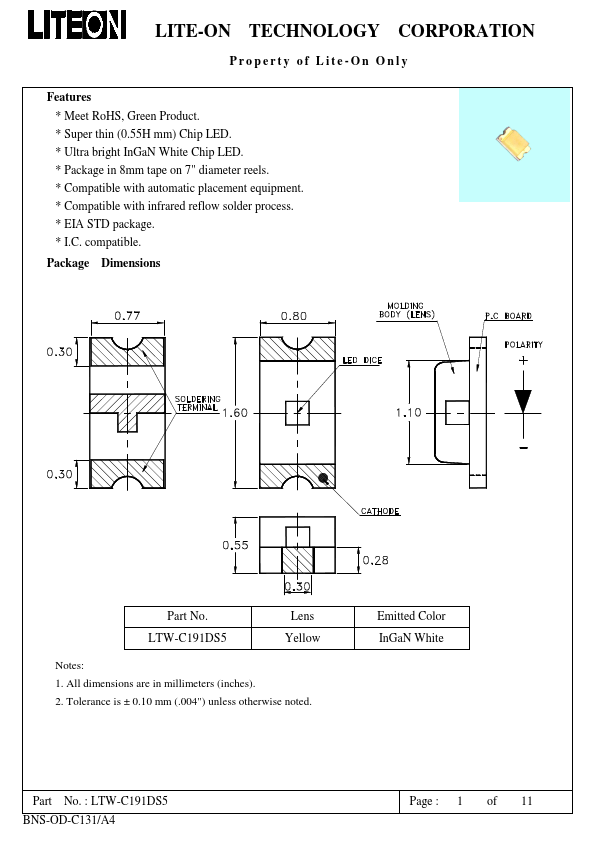

LTW-C191DS5
Features
- Meet Ro HS, Green Product.
- Super thin (0.55H mm) Chip LED.
- Ultra bright In Ga N White Chip LED.
- Package in 8mm tape on 7" diameter reels.
- patible with automatic placement equipment.
- patible with infrared reflow solder process.
- EIA STD package.
- I.C. patible.
Package Dimensions
Part No. LTW-C191DS5
Lens Yellow
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted.
Emitted Color In Ga N White
Part No. : LTW-C191DS5 BNS-OD-C131/A4
Page : 1 of 11
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only

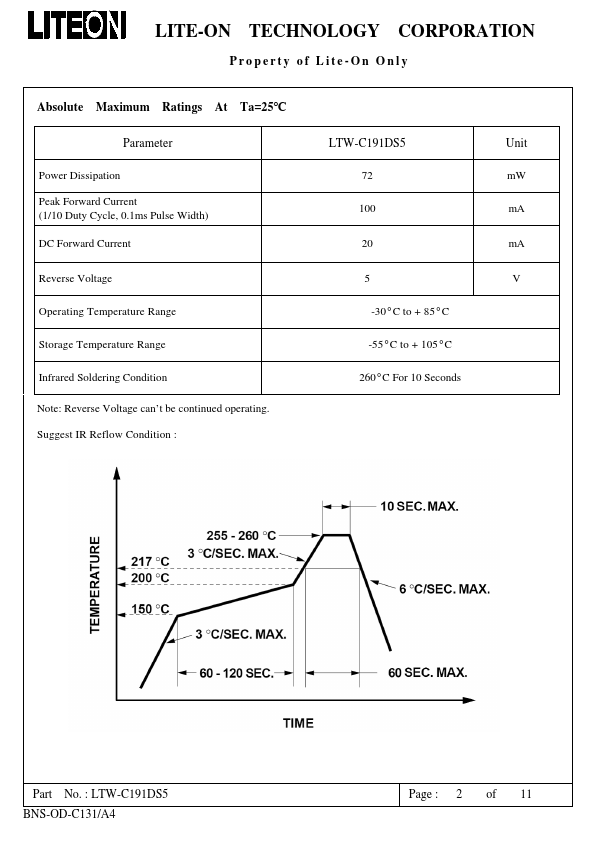

Absolute Maximum Ratings At Ta=25℃
Parameter
Power Dissipation Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) DC Forward Current
Unit
72 m W
100 m A
20 m A
Reverse Voltage
Operating Temperature Range
-30°C to + 85°C
Storage Temperature Range
-55°C to + 105°C
Infrared Soldering Condition Note: Reverse Voltage can’t be continued operating. Suggest IR Reflow Condition...
