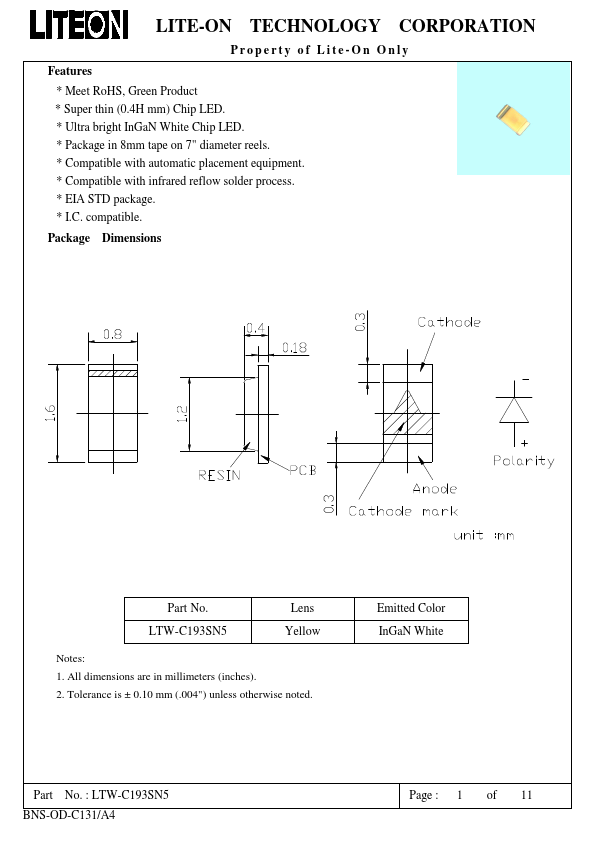

LTW-C193SN5
Features
- Meet Ro HS, Green Product
- Super thin (0.4H mm) Chip LED.
- Ultra bright In Ga N White Chip LED.
- Package in 8mm tape on 7" diameter reels.
- patible with automatic placement equipment.
- patible with infrared reflow solder process.
- EIA STD package.
- I.C. patible.
Package Dimensions
Part No. LTW-C193SN5
Lens Yellow
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted.
Emitted Color In Ga N White
Part No. : LTW-C193SN5 BNS-OD-C131/A4
Page : 1 of 11
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only

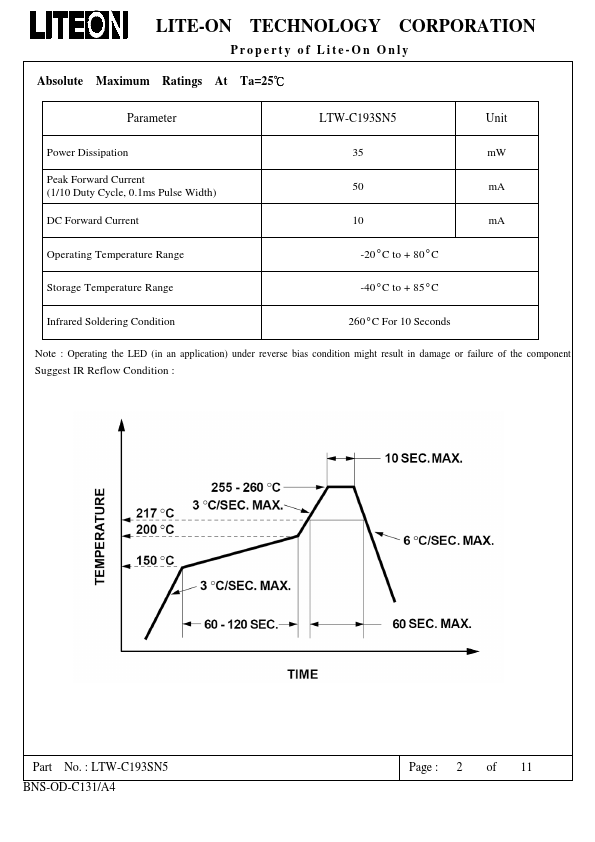

Absolute Maximum Ratings At Ta=25℃
Parameter
Power Dissipation Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) DC Forward Current
Operating Temperature Range
Unit
35 m W
50 m A
10 m A
-20°C to + 80°C
Storage Temperature Range
-40°C to + 85°C
Infrared Soldering Condition
260°C For 10 Seconds
Note : Operating the LED (in an application) under reverse bias condition might result in...
