LTW-C194TS5
Features
- Meet Ro HS, Green Product
- Super thin (0.30 mm) Chip LED.
- Ultra bright In Ga N White Chip LED.
- Package in 8mm tape on 7" diameter reels.
- patible with automatic placement equipment.
- patible with infrared reflow solder process.
- EIA STD package.
- I.C. patible.

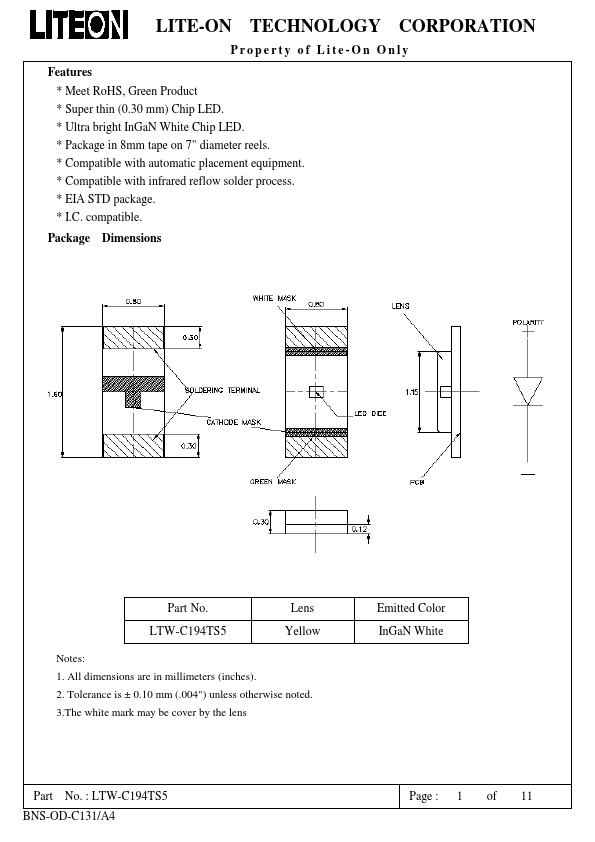

Package Dimensions
Part No. LTW-C194TS5
Lens Yellow
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.10 mm (.004") unless otherwise noted. 3.The white mark may be cover by the lens
Emitted Color In Ga N White
Part No. : LTW-C194TS5 BNS-OD-C131/A4
Page : 1 of 11
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only

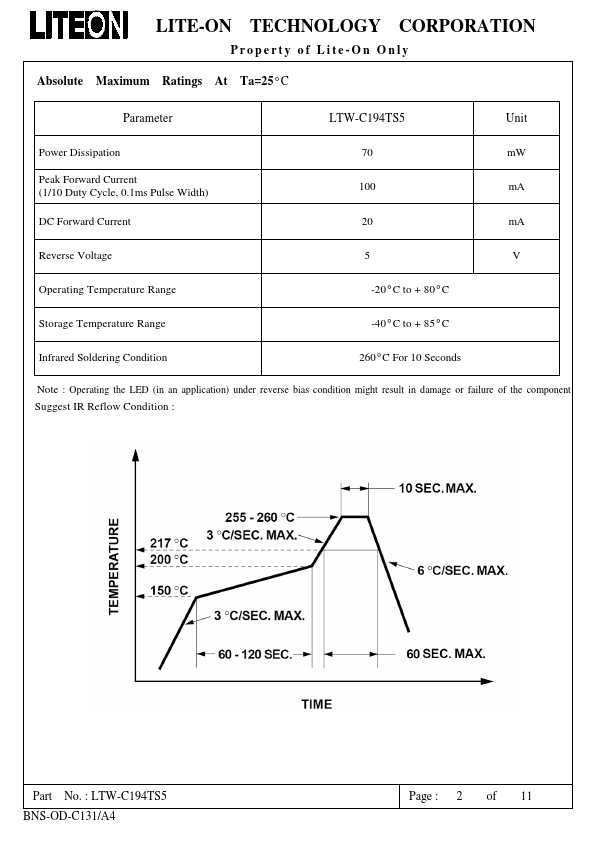

Absolute Maximum Ratings At Ta=25°C
Parameter
Power Dissipation Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) DC Forward Current
Unit
70 m W
100 m A
20 m A
Reverse Voltage Operating Temperature Range Storage Temperature Range
-20°C to + 80°C
-40°C to + 85°C
Infrared Soldering Condition
260°C For 10 Seconds
Note : Operating the...
