LS2003D-2RE - Standalone GPS smart antenna module

Datasheet Summary

Description

LOCOSYS Technology Inc.

20F.-13, No.79, Sec.

Features

  • MediaTek high sensitivity solution.
  • Support 66-channel GPS.
  • Ultra low power consumption.
  • Fast TTFF at low signal level.
  • Built-in 12 multi-tone active interference canceller.
  • Built-in DC/DC converter to save power.
  • Allow direct connection with the lithium battery.
  • Up to 10 Hz update rate.
  • ±11ns high accuracy time pulse (1PPS).
  • Support 1PPS synchronize with NMEA output.
  • Supports self-generate orbit prediction to achieve faster cold start.

📥 Download Datasheet

Datasheet preview – LS2003D-2RE

Datasheet Details

Part number LS2003D-2RE
Manufacturer LOCOSYS
File Size 1.14 MB
Description Standalone GPS smart antenna module
Datasheet download datasheet LS2003D-2RE Datasheet
Additional preview pages of the LS2003D-2RE datasheet.

📁 Similar Datasheet

  • LS20 - Surface Mountable Illuminated Switch (ETC)
  • LS201 - HIGH PERFORMANCE OPERATIONAL AMPLIFIERS (SGS)
  • LS202 - Ethernet Switch Stacking Controller (I-CUBE)
  • LS204 - HIGH PERFORMANCE DUAL OPERATIONAL AMPLIFIER (SGS)
  • LS204 - Low-noise bipolar operational amplifier (ST Microelectronics)
  • LS204A - HIGH PERFORMANCE DUAL OPERATIONAL AMPLIFIER (SGS)
  • LS204C - HIGH PERFORMANCE DUAL OPERATIONAL AMPLIFIER (SGS)
  • LS204C - Low-noise bipolar operational amplifier (STMicroelectronics)
  • LS204I - Low-noise bipolar operational amplifier (STMicroelectronics)
  • LS2051 - LS2051 (ETC)
Other Datasheets by LOCOSYS
  • LS20030 - GPS smart antenna module
  • LS20031 - GPS smart antenna module
  • LS20032 - GPS smart antenna module
  • LS20033 - GPS smart antenna module

Full PDF Text Transcription

Click to expand full text

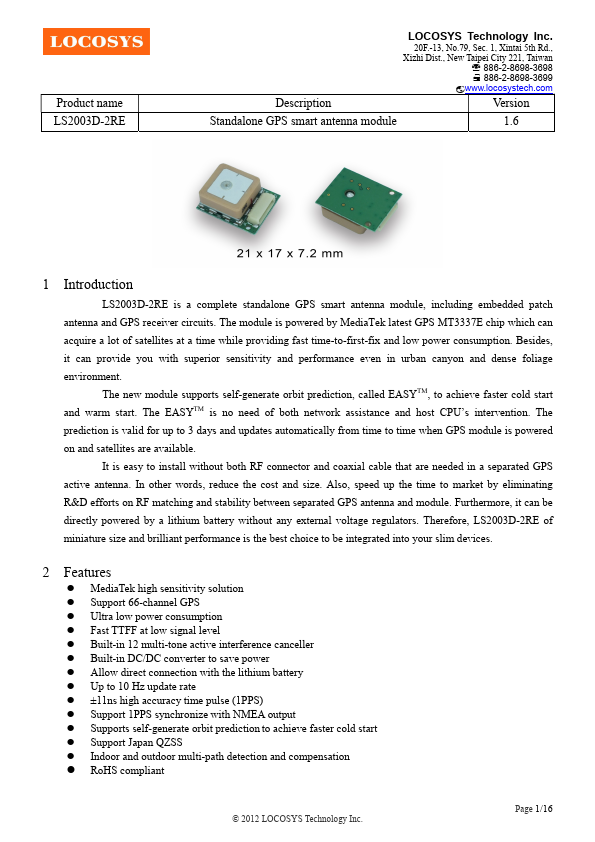

Product name LS2003D-2RE Description LOCOSYS Technology Inc. 20F.-13, No.79, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan  886-2-8698-3698  886-2-8698-3699 www.locosystech.com Version Standalone GPS smart antenna module 1.6 1 Introduction LS2003D-2RE is a complete standalone GPS smart antenna module, including embedded patch antenna and GPS receiver circuits. The module is powered by MediaTek latest GPS MT3337E chip which can acquire a lot of satellites at a time while providing fast time-to-first-fix and low power consumption. Besides, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. The new module supports self-generate orbit prediction, called EASYTM, to achieve faster cold start and warm start.
