24C256, 24C128 EEPROM

24C256 Description

LESHAN RADIO COMPANY, LTD.128K bits (16,384 X 8) / 256K bits (32,768 X 8) Two-wire Serial EEPROM Two-wire Serial EEPROM LR 24C128/LR 24C256 .
LR24C128/LR24C256 provides 131,072/262,144 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 16,384/32,768.

24C256 Features

* Two-wire Serial Interface VCC = 1.8V to 5.5V Bi-directional Data Transfer Protocol Internally Organized LR24C128, 16,384 X 8 (128K bits) LR24C256, 32,768 X 8 (256K bits) 400 kHz (1.8V, 2.7V, 5V) Compatibility 64-byte Page (128K/256K) Write Modes Partial Page Writes Allowed Self-timed Write Cycle (5

24C256 Applications

* where low-power and low-volta

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 24C256, 24C128. Please refer to the document for exact specifications by model.

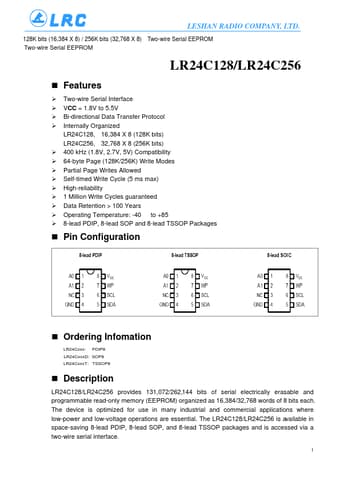

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
24C256, 24C128
Manufacturer
LRC
File Size
537.70 KB
Datasheet
24C128-LRC.pdf
Description
EEPROM
Note
This datasheet PDF includes multiple part numbers: 24C256, 24C128.
Please refer to the document for exact specifications by model.
