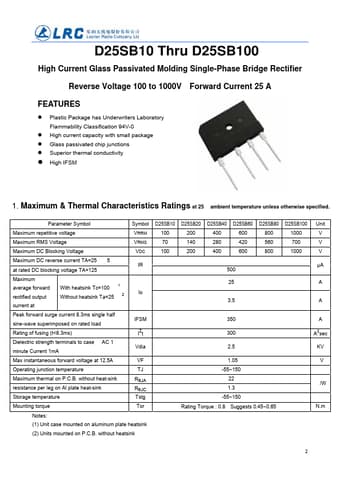

D25SB100, D25SB10 - High Current Glass Passivated Molding Single-Phase Bridge Rectifier

LRC

Datasheet Details

Part number	D25SB100, D25SB10
Manufacturer	LRC
File Size	290.41 KB
Description	High Current Glass Passivated Molding Single-Phase Bridge Rectifier
Datasheet	D25SB10_LRC.pdf
Note	This datasheet PDF includes multiple part numbers: D25SB100, D25SB10. Please refer to the document for exact specifications by model.

Plastic Package has Underwriters Laboratory Flammability Classification 94V-0 www. DataSheet4U. com This series is UL listed under the Recognized Component index,file number E231047 Single-in-line package High current capality with small package Superior thermal conductivity High temperature soldering guaranted: 260 /10 seconds High IFSM Maximum Ratings & Thermal Characteristics Ratings at 25 ambient temperature unless otherwise specified. Parameter Symbol Maximum repetitive voltage Maximum.
