D3SB20, D3SB10 Datasheet - LRC

D3SB20 High Current Glass Passivated Molding Single-Phase Bridge Rectifier

D3SB20 Features

* z Plastic Package has Underwriters Laboratory Flammability Classification 94V-0 z High current capacity with small package z Glass passivated chip junctions z Superior thermal conductivity z High IFSM 1. Maximum & Thermal Characteristics Ratings at 25 ambient temperature unless otherwise specified.

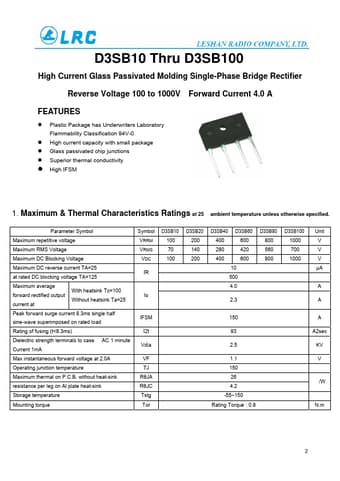

D3SB10-LRC.pdf

D3SB20 Datasheet Preview — This datasheet PDF includes multiple part numbers: D3SB20, D3SB10. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

D3SB20, D3SB10

Manufacturer:

LRC

File Size:

181.04 KB

Description:

High current glass passivated molding single-phase bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: D3SB20, D3SB10.
Please refer to the document for exact specifications by model.
