D5SB100

High Current Glass Passivated Molding Single-Phase Bridge Rectifier

D5SB100 Features

* z Plastic Package has Underwriters Laboratory Flammability Classification 94V-0 z High current capacity with small package z Glass passivated chip junctions z Superior thermal conductivity z High IFSM 1. Maximum & Thermal Characteristics Ratings at 25 ambient temperature unless otherwise specified.

D5SB100 Datasheet (225.02 KB)

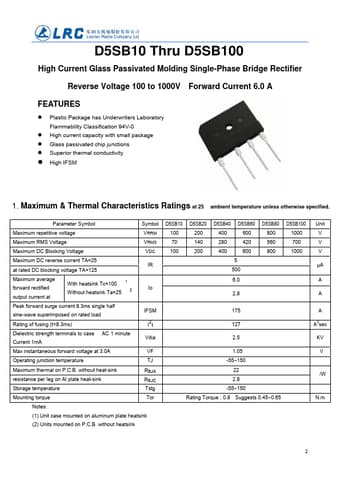

Preview of D5SB100 PDF

Datasheet Details

Part number:

D5SB100

Manufacturer:

LRC

File Size:

225.02 KB

Description:

High current glass passivated molding single-phase bridge rectifier.
