FFM107 - 1A Surface Mount Glass Passivated Fast recovery Rectifiers

Product Overview

LRC

Part number	FFM107
Manufacturer	LRC
File Size	321.08 KB
Description	1A Surface Mount Glass Passivated Fast recovery Rectifiers
Datasheet	FFM107 Datasheet
Note	This datasheet PDF includes multiple part numbers: FFM107, FFM101. Please refer to the document for exact specifications by model.

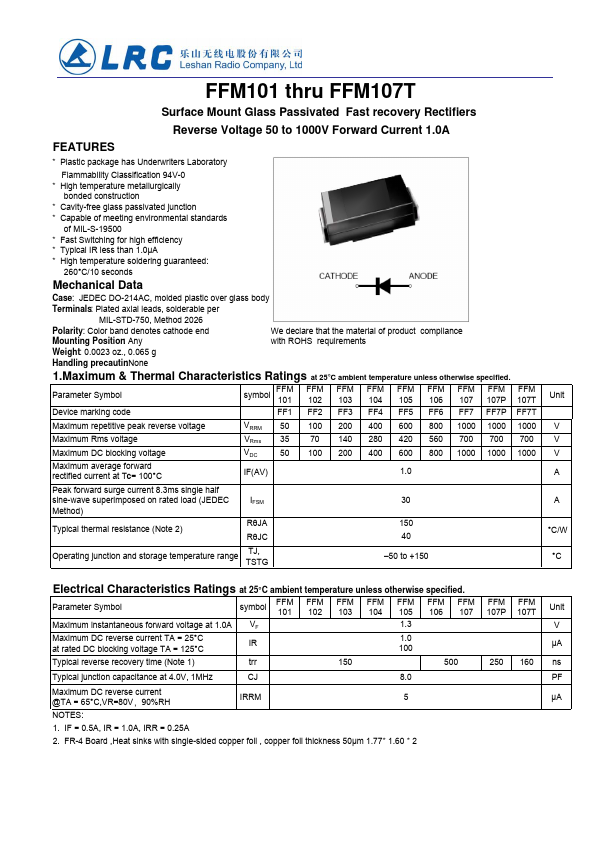

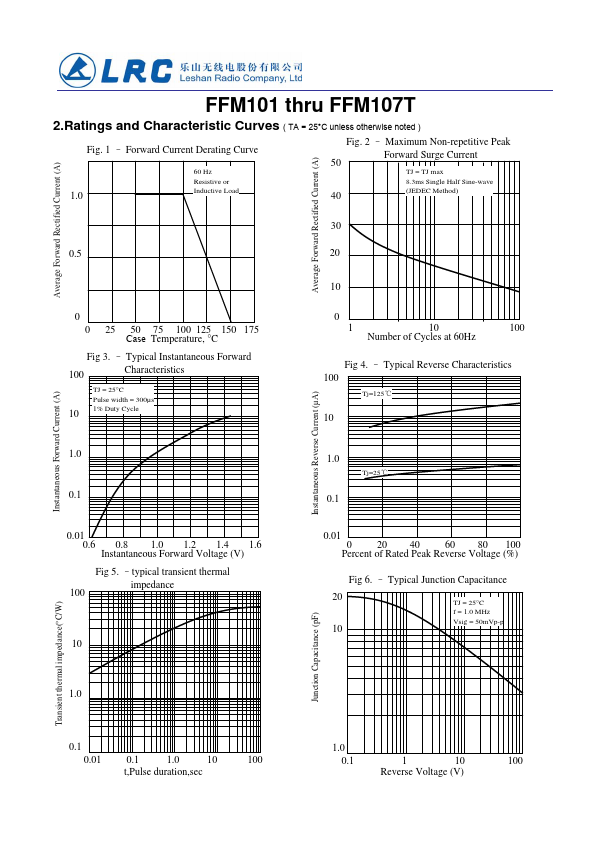

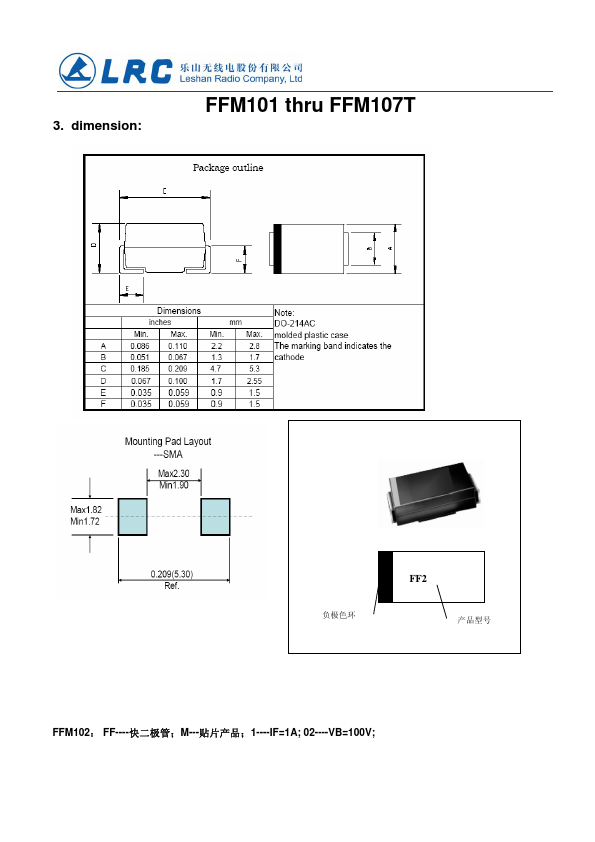

Additional preview pages of the FFM107 datasheet.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High temperature metallurgically bonded construction.
Cavity-free glass passivated junction.
Capable of meeting environmental standards of MIL-S-19500.
Fast Switching for high efficiency.
Typical IR less than 1.0µA.
High temperature soldering guaranteed: 260°C/10 seconds Mechanical Data Case: JEDEC DO-214AC, molded plastic over glass body Terminals: Plated axial leads, solderab.
