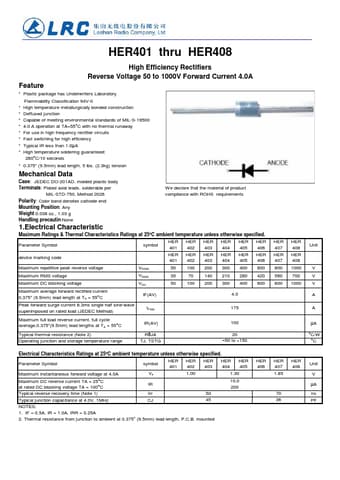

HER401 thru HER408
High Efficiency Rectifiers Reverse Voltage 50 to 1000V Forward Current 4.0A
Feature
* Plastic package has Underwriters Laboratory
Flammability Classification 94V-0 * High temperature metallurgically bonded construction * Deffused junction * Capable of meeting environmental standards of MIL-S-19500 * 4.0 A operation at TA=55°C with no thermal runaway * For use in high frequency rectifier circuits * Fast switching for high efficiency * Typical IR less than 1.0µA * High temperature soldering guaranteed:
260°C/10 seconds
* 0.375" (9.5mm) lead length, 5 lbs. (2.
