HFM106 - High Efficiency Rectifiers

Download the HFM106 datasheet PDF. This datasheet also covers the HFM101 variant, as both devices belong to the same high efficiency rectifiers family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • HFM101 thru HFM108 Surface Mount Glass Passivated.
  • Plastic package has Underwriters Laboratories Flammability Classification 94V-0.
  • Ideally suited for use in very high frequency switching.
  • power supplies, inverters and as free wheeling diodes.
  • Ultrafast recovery time for high efficiency.
  • Excellent high temperature switching.
  • Soft recovery characteristics.
  • Cavity-free glass passivated junction.
  • High temperature soldering guaranteed:.
  • 260°C/10 seconds.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HFM101-LRC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HFM106
Manufacturer LRC
File Size 169.25 KB
Description High Efficiency Rectifiers
Datasheet download datasheet HFM106 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HFM106 Ultra fast recovery type Formosa MS
HFM106 HIGH EFFICIENCY SILICON RECTIFIER WILLAS
HFM106 HIGH EFFICIENCY SILICON RECTIFIER Rectron
HFM106-M Ultra fast recovery type Formosa MS
HFM106-M ULTRA FAST RECOVER TYPE PACELEADER

Other Datasheets by LRC

Part Number Description
HFM101 High Efficiency Rectifiers
HFM102 High Efficiency Rectifiers
HFM103 High Efficiency Rectifiers
HFM104 High Efficiency Rectifiers
HFM105 High Efficiency Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

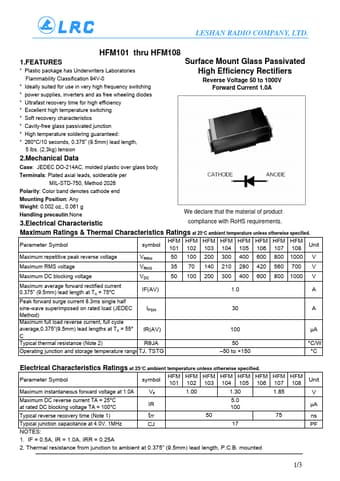

LESHAN RADIO COMPANY, LTD. 1.FEATURES HFM101 thru HFM108 Surface Mount Glass Passivated * Plastic package has Underwriters Laboratories Flammability Classification 94V-0 * Ideally suited for use in very high frequency switching * power supplies, inverters and as free wheeling diodes * Ultrafast recovery time for high efficiency * Excellent high temperature switching * Soft recovery characteristics * Cavity-free glass passivated junction * High temperature soldering guaranteed: * 260°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension High Efficiency Rectifiers Reverse Voltage 50 to 1000V Forward Current 1.0A 2.
