LR1117A

1A Adjustable/Fixed Low Dropout Linear Regulator

LR1117A Features

* Low dropout voltage

* Load regulation: 0.05% typical

* Trimmed current limit

* On-chip thermal limiting

* Standard SOT-223, TO-220, and TO-252 packages

* Three-terminal adjustable or fixed 1.8V, 2.5V, 2.85V, 3.3V, 5V Applications

* Active SCSI

LR1117A General Description

The LR1117A and LR1117A-1.8, -2.5, -2.85, -3.3 and -5 are low dropout three-terminal regulators with 1A output current capability. These devices have been optimized for low voltage where transient response and minimum input voltage are critical. The 2.85V version is designed specifically to be used i.

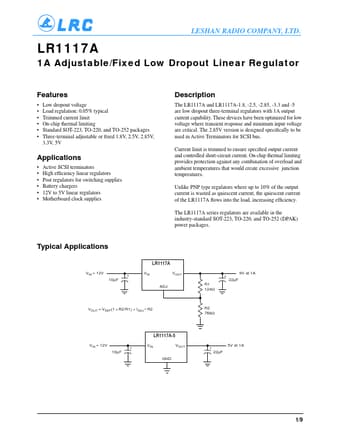

LR1117A Datasheet (134.02 KB)

Preview of LR1117A PDF

Datasheet Details

Part number:

LR1117A

Manufacturer:

LRC

File Size:

134.02 KB

Description:

1a adjustable/fixed low dropout linear regulator.
