S-CP4SMA170CA, S-CP4SMA6.8CA - Surface Mount Transient Voltage Suppressors

LRC

📥 Download Datasheet

S-CP4SMA170CA Datasheet Preview — This datasheet PDF includes multiple part numbers: S-CP4SMA170CA, S-CP4SMA6.8CA. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S-CP4SMA170CA, S-CP4SMA6.8CA
Manufacturer	LRC
File Size	429.51 KB
Description	Surface Mount Transient Voltage Suppressors
Datasheet	S-CP4SMA6.8CA-LRC.pdf
Note	This datasheet PDF includes multiple part numbers: S-CP4SMA170CA, S-CP4SMA6.8CA. Please refer to the document for exact specifications by model.

S-CP4SMA170CA Product details

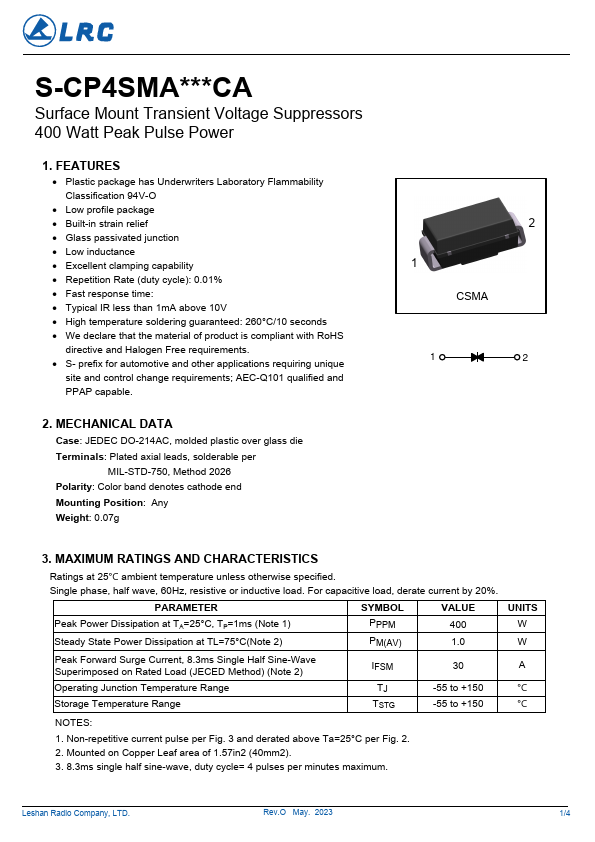

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
Low profile package.
Built-in strain relief.
Glass passivated junction.
Low inductance.
Excellent clamping capability.
Repetition Rate (duty cycle): 0.01%.
Fast response time:.
Typical IR less than 1mA above 10V.
High temperature soldering guaranteed: 260°C/10 seconds.
We declare that the material of product is complian.
