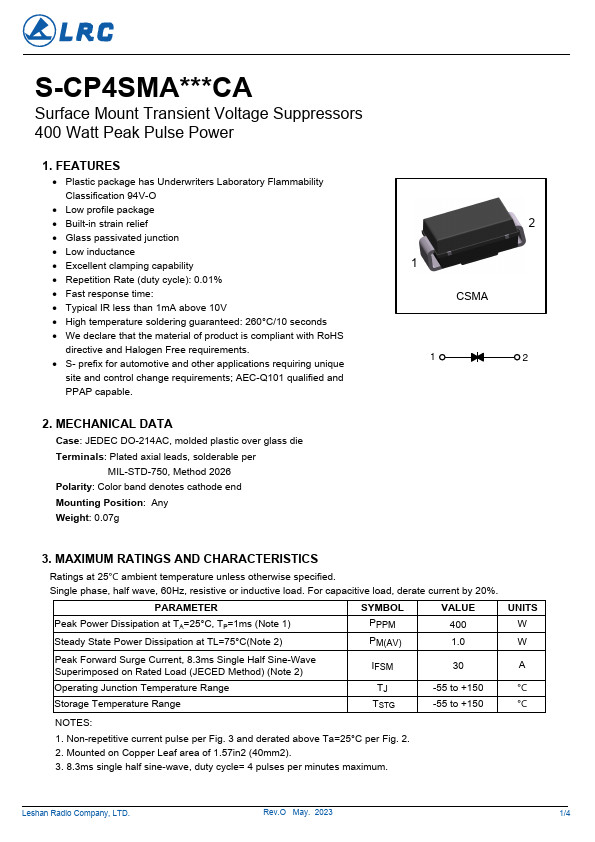

S-CP4SMA39CA, S-CP4SMA6.8CA Surface Mount Transient Voltage Suppressors

LRC

Description

S-CP4SMA * * *CA Surface Mount Transient Voltage Suppressors 400 Watt Peak Pulse Power 1..

📥 Download Datasheet

S-CP4SMA39CA Datasheet Preview — This datasheet PDF includes multiple part numbers: S-CP4SMA39CA, S-CP4SMA6.8CA. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: S-CP4SMA39CA, S-CP4SMA6.8CA
Manufacturer: LRC
File Size: 429.51 KB
Datasheet: S-CP4SMA6.8CA-LRC.pdf
Description: Surface Mount Transient Voltage Suppressors
Note: This datasheet PDF includes multiple part numbers: S-CP4SMA39CA, S-CP4SMA6.8CA.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* Low profile package
* Built-in strain relief
* Glass passivated junction
* Low inductance
* Excellent clamping capability
* Repetition Rate (duty cycle): 0.01%

Applications

* requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. 2. MECHANICAL DATA Case: JEDEC DO-214AC, molded plastic over glass die Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any We
