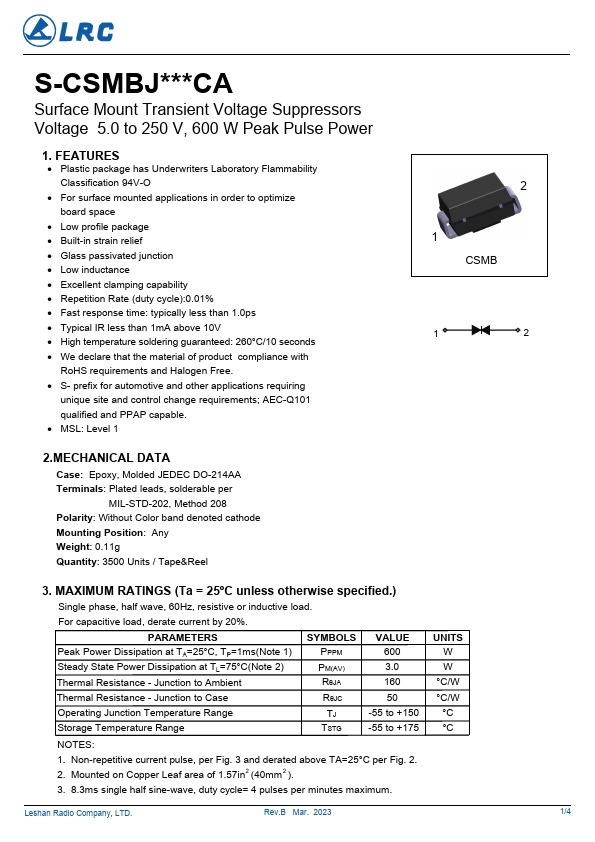

S-CSMBJ120CA, S-CSMBJ5.0CA Surface Mount Transient Voltage Suppressors

LRC

Description

S-CSMBJ * * *CA Surface Mount Transient Voltage Suppressors Voltage 5.0 to 250 V, 600 W Peak Pulse Power 1..

📥 Download Datasheet

S-CSMBJ120CA Datasheet Preview — This datasheet PDF includes multiple part numbers: S-CSMBJ120CA, S-CSMBJ5.0CA. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: S-CSMBJ120CA, S-CSMBJ5.0CA
Manufacturer: LRC
File Size: 249.74 KB
Datasheet: S-CSMBJ5.0CA-LRC.pdf
Description: Surface Mount Transient Voltage Suppressors
Note: This datasheet PDF includes multiple part numbers: S-CSMBJ120CA, S-CSMBJ5.0CA.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

Applications

* in order to optimize board space
* Low profile package
* Built-in strain relief
* Glass passivated junction
* Low inductance
* Excellent clamping capability
* Repetition Rate (duty cycle):0.01%
* Fast response time: typically less than 1.0ps
