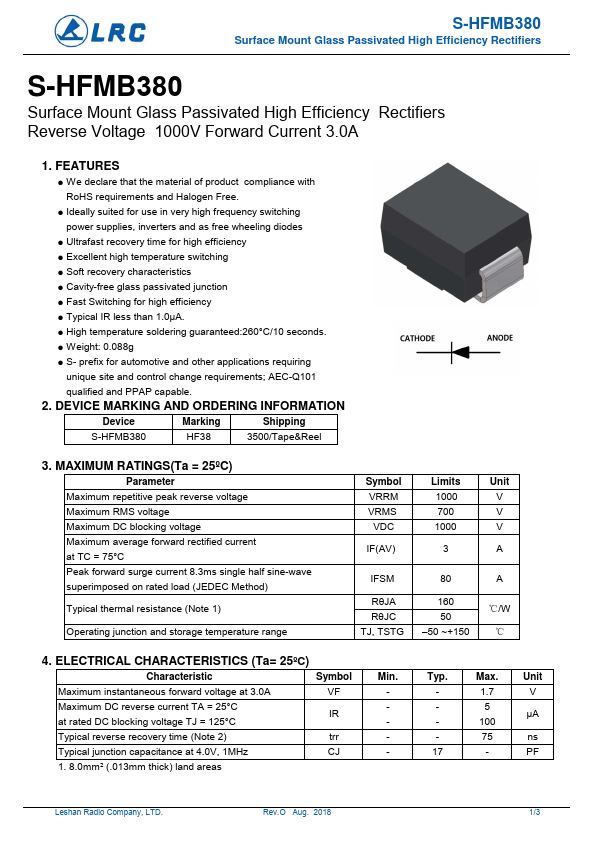

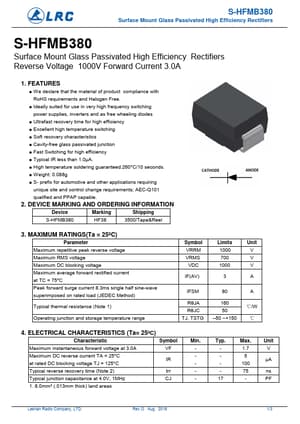

S-HFMB380 Surface Mount Glass Passivated High Efficiency Rectifiers

S-HFMB380 Surface Mount Glass Passivated High Efficiency Rectifiers S-HFMB380 Surface Mount Glass Passivated High Efficiency Rectifiers Reverse Volta.

S-HFMB380-LRC.pdf

S-HFMB380 Datasheet Preview — Preview of S-HFMB380 PDF

Datasheet Details

Part number:

S-HFMB380

Manufacturer:

LRC

File Size:

605.78 KB

Description:

Surface Mount Glass Passivated High Efficiency Rectifiers

Features

* We declare that the material of product compliance with RoHS requirements and Halogen Free.
* Ideally suited for use in very high frequency switching power supplies, inverters and as free wheeling diodes
* Ultrafast recovery time for high efficiency
* Excellent high temperatu

Applications

* requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. 2. DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping S-HFMB380 HF38 3500/Tape&Reel 3. MAXIMUM RATINGS(Ta = 25ºC) Parameter Maximum repetitive peak reverse voltage Maximum RMS voltage M
