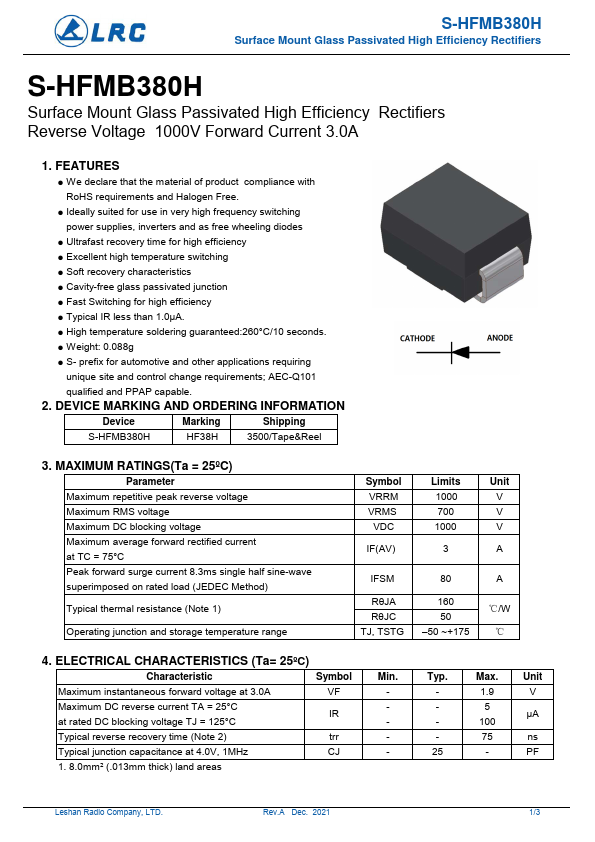

S-HFMB380H
FEATURES
- We declare that the material of product pliance with
Ro HS requirements and Halogen Free.
- Ideally suited for use in very high frequency switching power supplies, inverters and as free wheeling diodes
- Ultrafast recovery time for high efficiency
- Excellent high temperature switching
- Soft recovery characteristics
- Cavity-free glass passivated junction
- Fast Switching for high efficiency
- Typical IR less than 1.0µA.
- High temperature soldering guaranteed:260°C/10 seconds.
- Weight: 0.088g
- S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable.
2. DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Shipping
HF38H
3500/Tape&Reel
3. MAXIMUM RATINGS(Ta = 25ºC)
Parameter Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TC = 75°C Peak forward surge current 8.3ms single...
