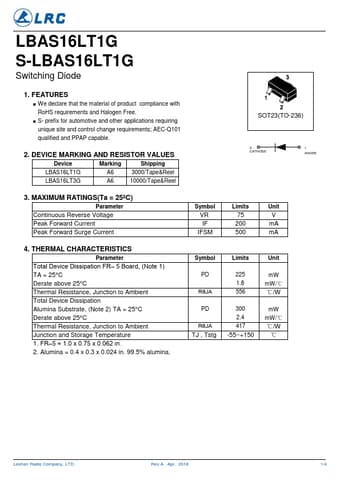

S-LBAS16LT1G
FEATURES
- We declare that the material of product pliance with Ro HS requirements and Halogen Free.
- S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable.
2. DEVICE MARKING AND RESISTOR VALUES
Device
Marking
Shipping
LBAS16LT1G
A6 3000/Tape&Reel
LBAS16LT3G
A6 10000/Tape&Reel
SOT23(TO-236)
3 CATHODE
1 ANODE
3. MAXIMUM RATINGS(Ta = 25ºC)
Parameter
Continuous Reverse Voltage Peak Forward Current Peak Forward Surge Current
Symbol
VR IF IFSM
Limits
75 200 500
Unit
V m A m A
4. THERMAL CHARACTERISTICS
Parameter
Total Device Dissipation FR- 5 Board, (Note 1) TA = 25°C Derate above 25°C Thermal Resistance, Junction to Ambient Total Device Dissipation Alumina Substrate, (Note 2) TA = 25°C Derate above 25°C Thermal Resistance, Junction to Ambient Junction and Storage Temperature 1. FR- 5 = 1.0 x 0.75 x 0.062 in. 2. Alumina = 0.4 x 0.3 x...
