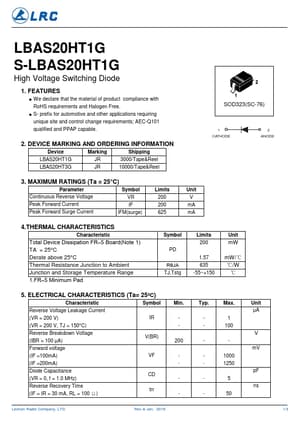

S-LBAS20HT1G
FEATURES
- We declare that the material of product pliance with Ro HS requirements and Halogen Free.
- S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable.
2. DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Shipping
LBAS20HT1G
3000/Tape&Reel
LBAS20HT3G
10000/Tape&Reel
SOD323(SC-76)
1 CATHODE
2 ANODE
3. MAXIMUM RATINGS (Ta = 25°C)
Parameter
Symbol
Limits
Unit
Continuous Reverse Voltage
Peak Forward Current
200 m A
Peak Forward Surge Current
IFM(surge)
625 m A
4.THERMAL CHARACTERISTICS
Characteristic
Total Device Dissipation FR- 5 Board(Note 1) TA = 25°C Derate above 25°C Thermal Resistance Junction to Ambient Junction and Storage Temperature Range 1.FR- 5 Minimum Pad
Symbol
RθJA TJ,Tstg
Limits
Unit
200 m W
1.57 635 -55~+150 m W/℃...
