S-LBAS40BST5G Datasheet - LRC

SCHOTTKY BARRIER DIODE

S-LBAS40BST5G Features

* Low forward current Guard ring protected Low diode capacitance. S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. APPLICATIONS Ultra high-speed switching Voltage clamping Protection circuits. Blocking diodes. D

S-LBAS40BST5G General Description

Planar Schottky barrier diodes with an integrated guard ring for stress protection. We declare that the material of product compliance with RoHS requirements. LBAS40BST5G S-LBAS40BST5G 1 2 SOD882 1 Cathode 2 Anode ORDERING INFORMATION Device LBAS40BST1G S-LBAS40BST1G LBAS40BST3G S-LBAS40BST3G.

S-LBAS40BST5G Datasheet (173.32 KB)

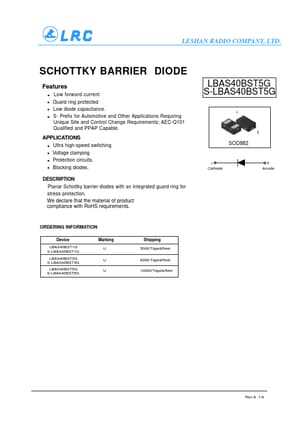

Preview of S-LBAS40BST5G PDF

Datasheet Details

Part number:

S-LBAS40BST5G

Manufacturer:

LRC

File Size:

173.32 KB

Description:

Schottky barrier diode.
