80220

(80220 / 80221) 100BASE-TX/10BASE-T Ethernet Media Interface Adapter

LSI

80220 Features

* s Single Chip 100Base-TX / 10Base-T Physical Layer Solution s Dual Speed - 100/10 Mbps s Half And Full Duplex s MII Interface To Ethernet Controller s MI Interface For Configuration & Status s Optional Repeater Interface s AutoNegotiation: 10/100, Full/Half Duplex s Meets All Applicable IEEE 802.3,

80220 General Description

The 80220/80221 are highly integrated analog interface IC's for twisted pair Ethernet applications. The 80220/ 80221 can be configured for either 100 Mbps (100BaseTX) or 10 Mbps (10Base-T) Ethernet operation. The 80220 is packaged in a 44L package, while the 80221 is packaged in a 64L package and co.

80220 Datasheet (637.92 KB)

Rating: 1 ★ (2 votes)

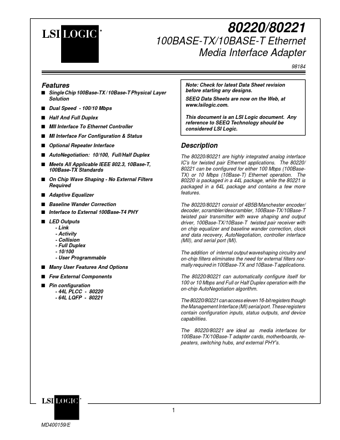

80220 Datasheet Preview — Preview of 80220 PDF

Datasheet Details

Part number:

80220

Manufacturer:

LSI

File Size:

637.92 KB

Description:

(80220 / 80221) 100base-tx/10base-t ethernet media interface adapter.
