LS7505 Datasheet, Controllers, LSI

LS7505 Features

• Controllers
• Circuit activated by Tone with specific Frequency and Time Duration.
• Frequency and Time Duration values are mask programmable.
• Small Signal (as low as - 3

PDF File Details

Part number:

LS7505

Manufacturer:

LSI

File Size:

34.00kb

Download:

📄 Datasheet

Description:

Tone activated telephone line switch controllers. The LS7501 - LS7510 are CMOS frequency discriminator circuits designed to respond to a specific frequency TONE signa

LS7505 Application

• Applications
• Remote telephone line testing
• Remote meter reading

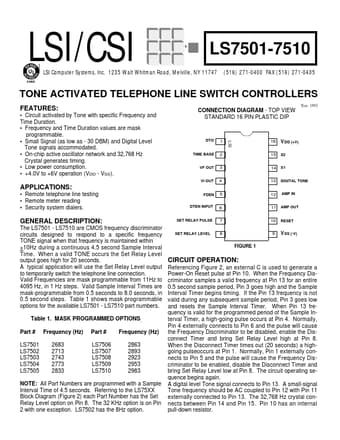

• Security system dialers. Nov. 1993 CONNECTION DIAGRA
