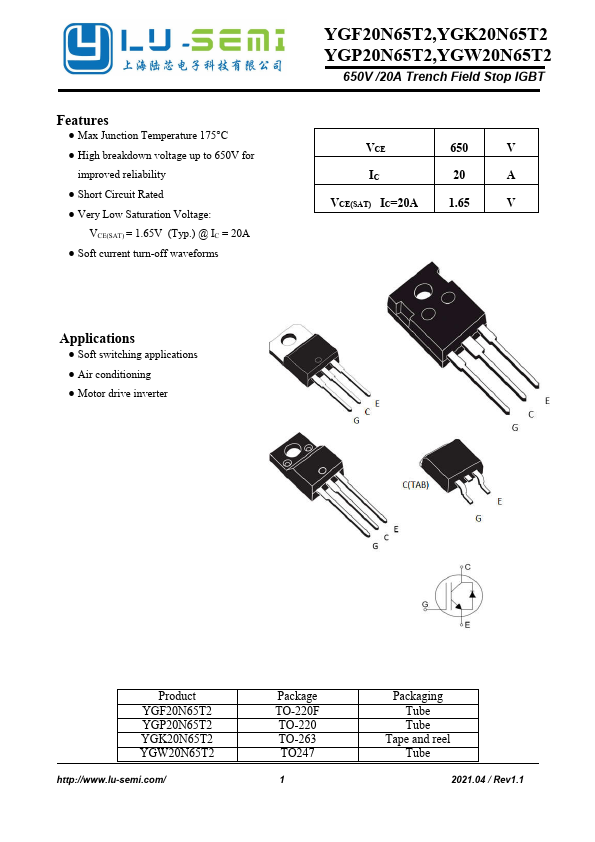

YGP20N65T2 - 650V /20A Trench Field Stop IGBT

Datasheet Details

Max Junction Temperature 175°C.
High breakdown voltage up to 650V for improved reliability.
Short Circuit Rated.
Very Low Saturation Voltage: VCE(SAT) = 1.65V (Typ. ) @ IC = 20A.
Soft current turn-off waveforms YGF20N65T2,YGK20N65T2 YGP20N65T2,YGW20N65T2 650V /20A Trench Field Stop IGBT VCE 650 V IC 20 A VCE(SAT) IC=20A 1.65 V.
