FX1011 Datasheet, Coupler, LYG

FX1011 Features

  • Coupler
  • High isolation 5000 VRMS
  • CTR flexibility available see order information
  • DC input with transistor output
  • Operating temperature range - 55 °C to 1

PDF File Details

Part number:

FX1011

Manufacturer:

LYG

File Size:

1.24MB

Download:

📄 Datasheet

Description:

Photo transistor coupler. The FX101 series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon planar phototransis

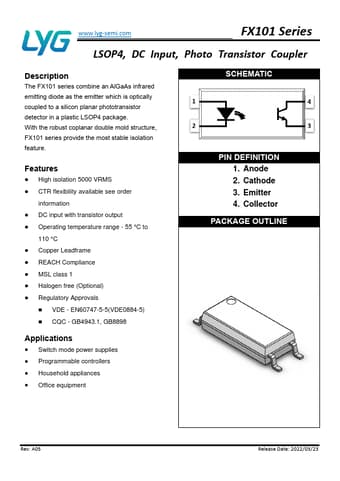

Datasheet Preview: FX1011 📥 Download PDF (1.24MB)
Page 2 of FX1011 Page 3 of FX1011

FX1011 Application

  • Applications
  • Switch mode power supplies
  • Programmable controllers
  • Household appliances
  • Office equipment SCHE
