FX1014, FX1010, Photo Transistor Coupler

www.lyg-semi.com FX101 Series LSOP4, DC Input, Photo Transistor Coupler .
The FX101 series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon planar phototransistor detector in a.

datasheet Preview Page 1 from Datasheet4u.com

FX1010-LYG.pdf

FX1014 Datasheet Preview — This datasheet PDF includes multiple part numbers: FX1014, FX1010. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

FX1014, FX1010

Manufacturer:

LYG

File Size:

1.24 MB

Description:

Photo Transistor Coupler

Note:

This datasheet PDF includes multiple part numbers: FX1014, FX1010.
Please refer to the document for exact specifications by model.

Features

* High isolation 5000 VRMS
* CTR flexibility available see order information
* DC input with transistor output
* Operating temperature range - 55 °C to 110 °C
* Copper Leadframe
* REACH Compliance
* MSL class 1
* Halogen free (Optional)
* Regulatory Approvals

Applications

* Switch mode power supplies
* Programmable controllers
* Household appliances

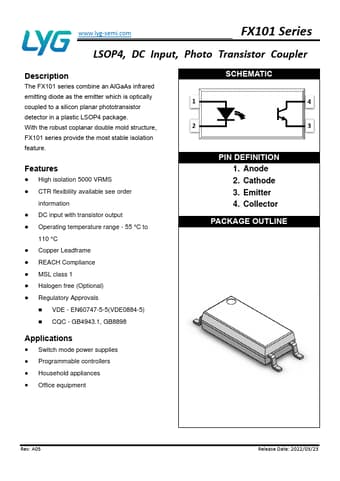

* Office equipment SCHEMATIC 1 4 2 3 PIN DEFINITION 1. Anode 2. Cathode 3. Emitter 4. Collector PACKAGE OUTLINE Rev: A05 Release Date: 2022/03/23 www. lyg-semi. com FX101 Series LS
