2SC1360 - SILICON PNP TRANSISTOR

LZG

📥 Download Datasheet

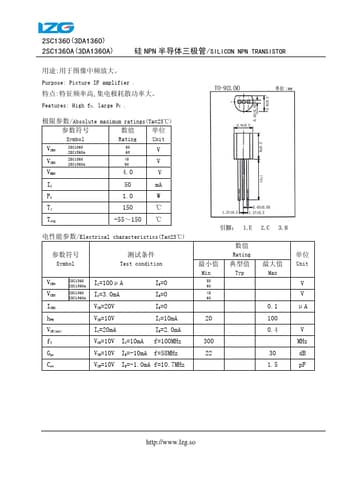

2SC1360 Datasheet Preview — Preview of 2SC1360 PDF

datasheet Preview Page 2

Datasheet Details

Part number	2SC1360
Manufacturer	LZG
File Size	193.16 KB
Description	SILICON PNP TRANSISTOR
Datasheet	2SC1360-LZG.pdf

2SC1360 Product details

Features

High fT, large PC . /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO VCEO VEBO 2SC1360 2SC1360A 2SC1360 2SC1360A 50 60 V 45 60 V 4.0 V IC 50 mA PC 1.0 W Tj 150 ℃ Tstg -55～150 ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition VCBO VCEO ICBO hFE VCE(sat) fT Gpe Cre 2SC1360 2SC1360A 2SC1360 2SC1360A IC=100μA IE=0 IC=3.0mA IB=0 VCB=20V IE=0 VCE=10V IC=10mA IC=20mA IB=2.0mA VCE=10V IC=10mA f=100MHz VCB=10V IE=-10mA f=58MHz VCB=10V IE=-1.0mA.
