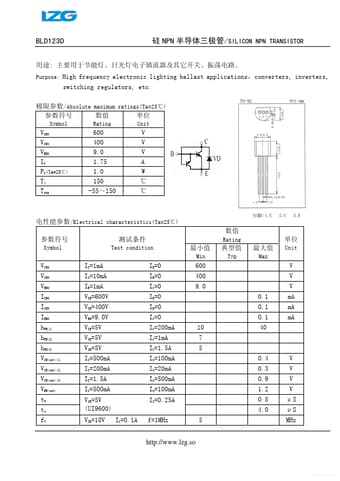

BLD123D SILICON NPN TRANSISTOR

BLD123D NPN /SILICON NPN TRANSISTOR : 、、。 Purpose: High frequency electronic lighting ballast applications，converters, inverters, switching regulators, etc. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO VCEO VEBO IC PC(Ta=25℃) Tj Tsag 600 400 9.0 1.75 1.0 150 -55～150 V V V A W ℃ ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition Rating Max Unit Min Typ VCBO VCEO VEBO ICBO ICEO IEBO hFE(1) hFE(2) hFE(3) VCE(sat)(1) VCE(sat)(2) VCE(sat)(3) VBE(sat) tf t.
