HR2220V801R-10, HZ0402-A601R Datasheet - Laird

HR2220V801R-10 Ferrite EMI Chip Beads

HR2220V801R-10 Features

* Up to 10 Amps (I MAX) continuous operating capability

* Low DCR

* Vibration Resistant

* Rugged monolithic construction

* Small footprint

* Excellent retention under bias

* Superior impedance vs. frequency characteristics

* Economical

HZ0402-A601R-10.pdf

This datasheet PDF includes multiple part numbers: HR2220V801R-10, HZ0402-A601R. Please refer to the document for exact specifications by model.

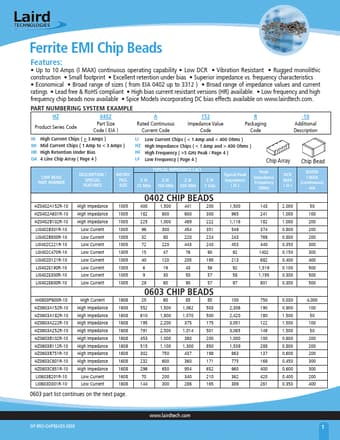

HR2220V801R-10 Datasheet Preview Page 2 HR2220V801R-10 Datasheet Preview Page 3

Datasheet Details

Part number:

HR2220V801R-10, HZ0402-A601R

Manufacturer:

Laird

File Size:

498.80 KB

Description:

Ferrite emi chip beads.

Note:

This datasheet PDF includes multiple part numbers: HR2220V801R-10, HZ0402-A601R.
Please refer to the document for exact specifications by model.
