MI0805L301R-10, HZ0402-A601R Ferrite EMI Chip Beads

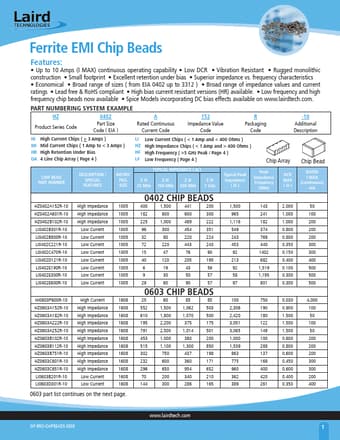

📥 Download Datasheet Datasheet Preview Page 1

Description

Ferrite EMI Chip Beads .
High Current Chips ( > 3 Amps ) Mid Current Chips ( 1 Amp to < 3 Amps ) High Retention Under Bias 4 Line Chip Array ( Page 4 ) DESCRIPTION / SPECIAL.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MI0805L301R-10, HZ0402-A601R. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MI0805L301R-10, HZ0402-A601R
Manufacturer
Laird
File Size
498.80 KB
Datasheet
HZ0402-A601R-10.pdf
Description
Ferrite EMI Chip Beads
Note
This datasheet PDF includes multiple part numbers: MI0805L301R-10, HZ0402-A601R.
Please refer to the document for exact specifications by model.

Features

* Up to 10 Amps (I MAX) continuous operating capability
* Low DCR
* Vibration Resistant
* Rugged monolithic construction
* Small footprint
* Excellent retention under bias
* Superior impedance vs. frequency characteristics
* Economical
