MI1206K601R-10, HZ0402-A601R - Ferrite EMI Chip Beads

Laird

📥 Download Datasheet

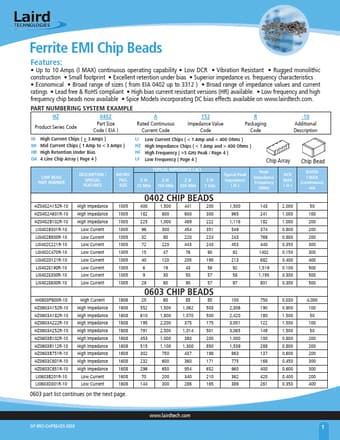

MI1206K601R-10 Datasheet Preview — This datasheet PDF includes multiple part numbers: MI1206K601R-10, HZ0402-A601R. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MI1206K601R-10, HZ0402-A601R
Manufacturer	Laird
File Size	498.80 KB
Description	Ferrite EMI Chip Beads
Datasheet	HZ0402-A601R-10.pdf
Note	This datasheet PDF includes multiple part numbers: MI1206K601R-10, HZ0402-A601R. Please refer to the document for exact specifications by model.

MI1206K601R-10 Product details

Description

High Current Chips ( > 3 Amps ) Mid Current Chips ( 1 Amp to < 3 Amps ) High Retention Under Bias 4 Line Chip Array ( Page 4 ) DESCRIPTION / SPECIAL

Features

Up to 10 Amps (I MAX) continuous operating capability.
Low DCR.
Vibration Resistant.
Rugged monolithic construction.
Small footprint.
Excellent retention under bias.
Superior impedance vs. frequency characteristics.
Economical.
Broad range of sizes ( from EIA 0402 up to 3312 ).
Broad range of impedance values and current ratings.
Lead free & RoHS compliant.
High bias current resistant ve.
